Transaxle Support Insulator - Anti-Roll, 3.5L: Notes
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

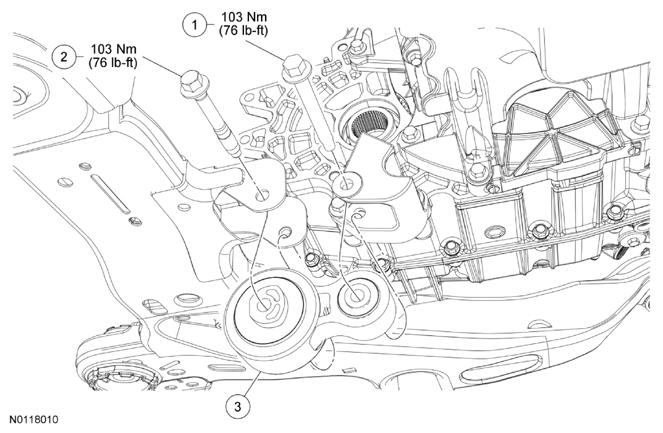

Fig 1: Transaxle Support Insulator And Related Components With Torque Specifications-(Anti-Roll, 3.5L)
| Item | Part Number | Description |
|---|---|---|
| 1 | W709128 | Roll restrictor-to-transaxle bracket through bolt |
| 2 | W713156 | Roll restrictor-to-subframe through bolt |
| 3 | 6P082 | Roll restrictor |
