Transaxle Cooling - 3.5L Engine

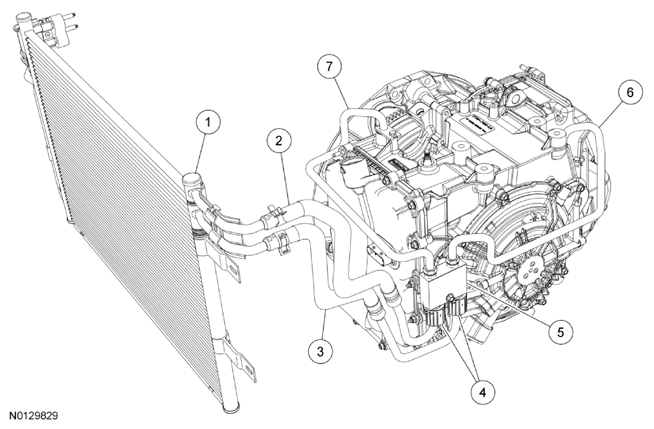

Fig 1: Identifying Transaxle Cooling Related Components - 3.5L Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19712	Transmission fluid cooler
2	7R081	Transmission fluid cooler outlet tube and hose assembly
3	7R081	Transmission fluid cooler inlet tube and hose assembly
4	7J081	Transmission fluid cooler tube secondary latches
5	7H322	Transmission fluid cooler thermal bypass valve
6	7H420	Transmission fluid cooler inlet tube
7	7H420	Transmission fluid cooler outlet tube
