Component Location Views

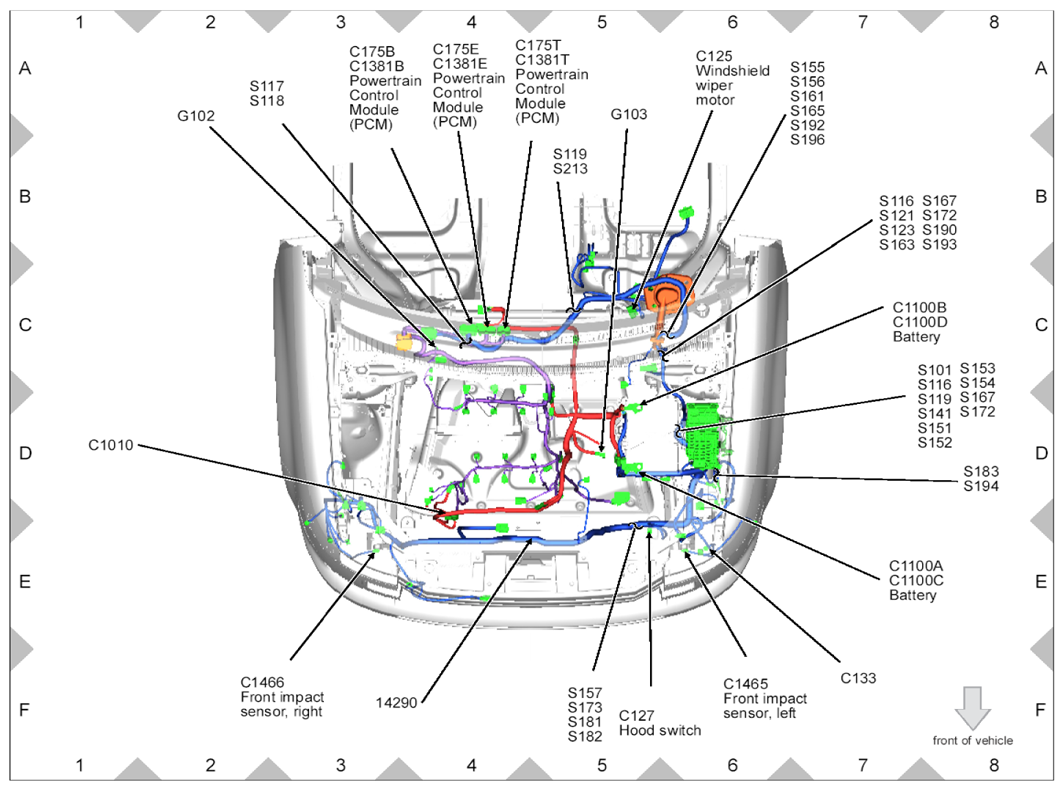

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 3)

G07906539

Courtesy of FORD MOTOR CO.

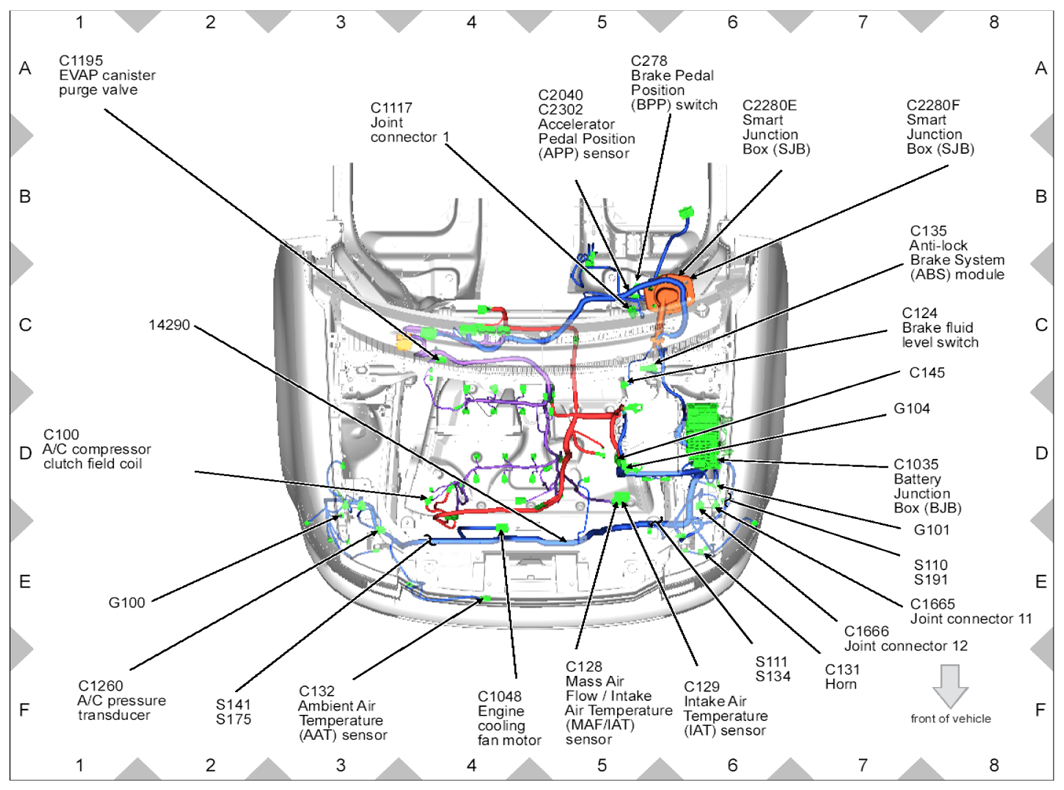

Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 3)

G07906540

Courtesy of FORD MOTOR CO.

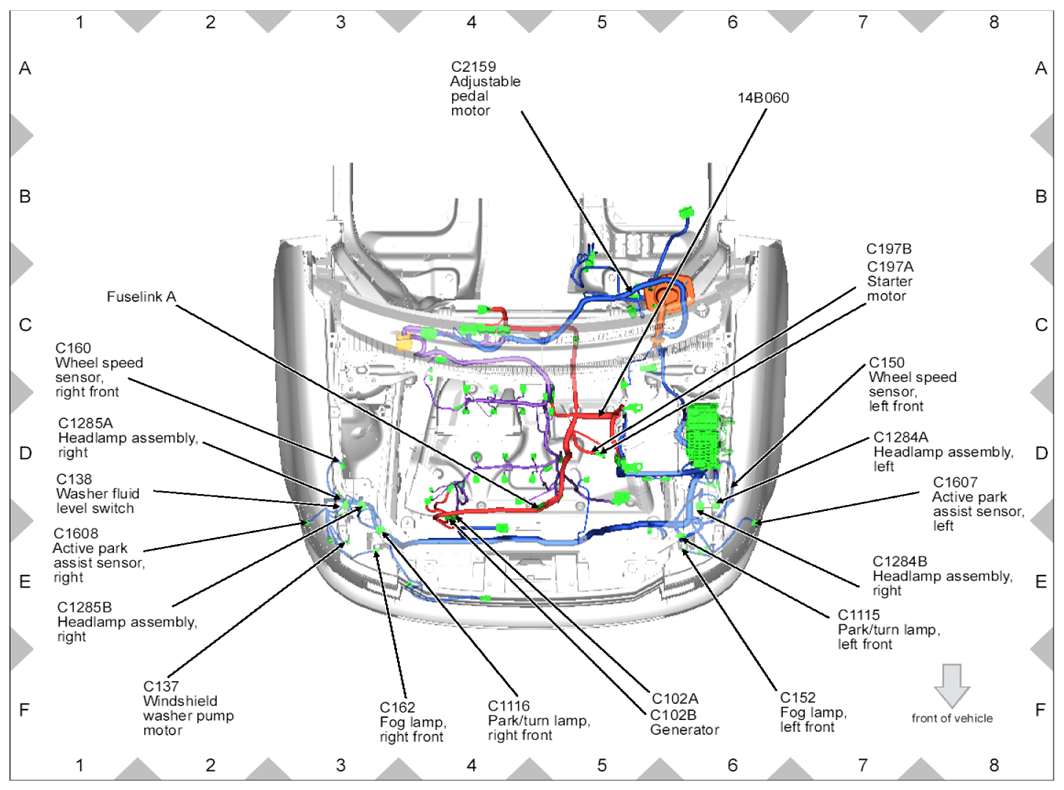

Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 3)

G07906541

Courtesy of FORD MOTOR CO.

Fig 4: Engine Wiring Harness Connectors Location (1 Of 4)

G07906542

Courtesy of FORD MOTOR CO.

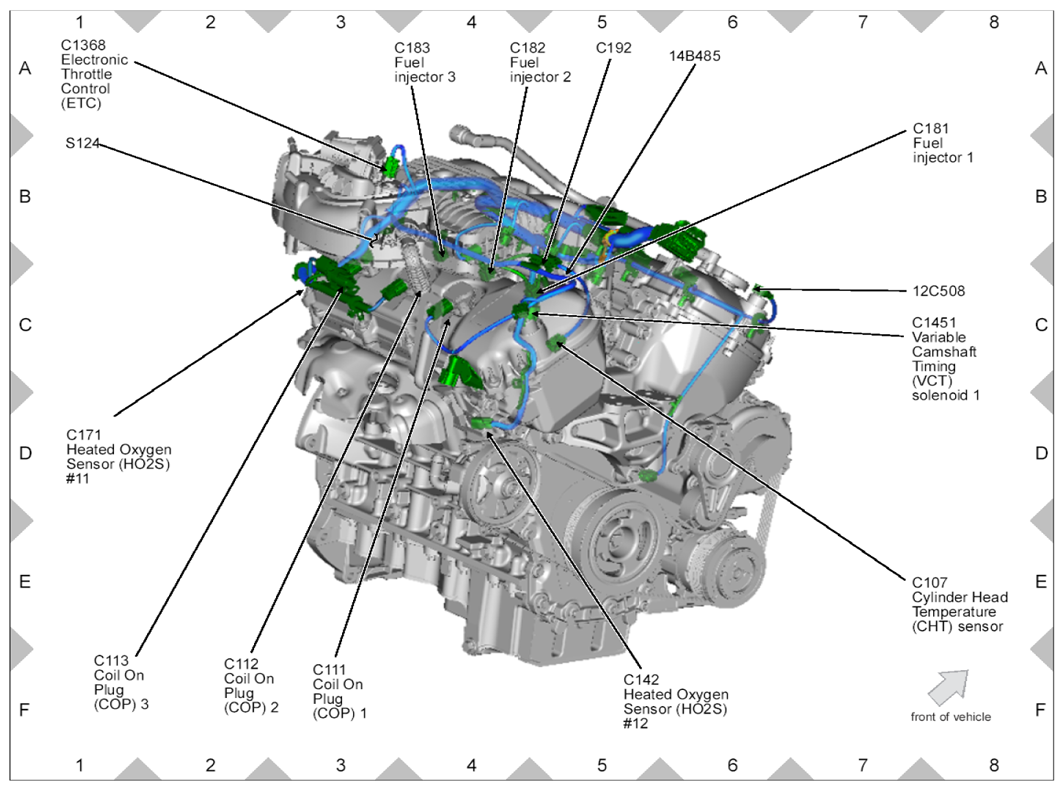

Fig 5: Engine Wiring Harness Connectors Location (2 Of 4)

G07906543

Courtesy of FORD MOTOR CO.

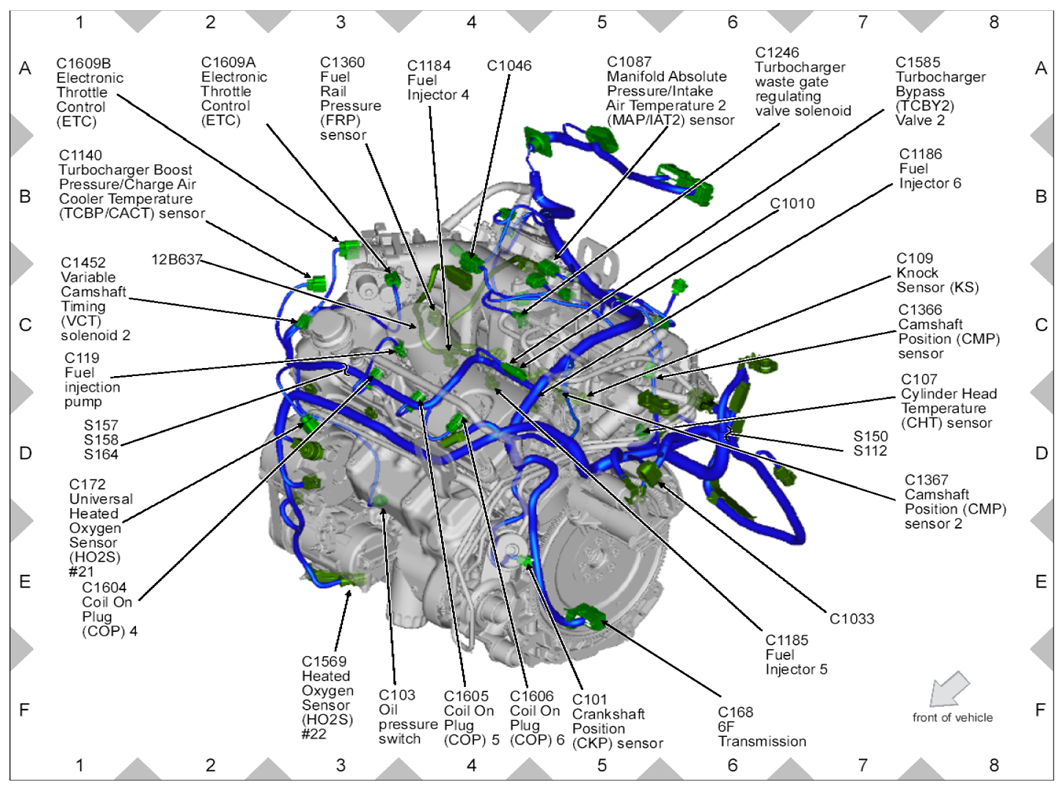

Fig 6: Engine Wiring Harness Connectors Location (3 Of 4)

G07906544

Courtesy of FORD MOTOR CO.

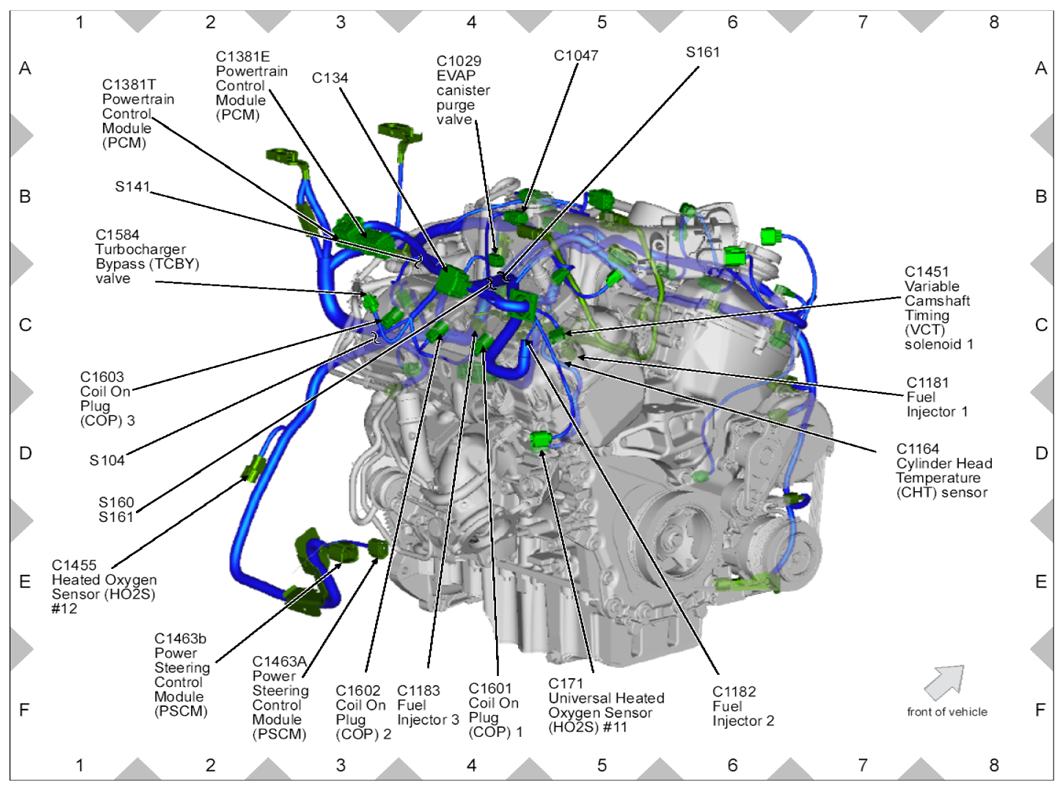

Fig 7: Engine Wiring Harness Connectors Location (4 Of 4)

G07906545

Courtesy of FORD MOTOR CO.

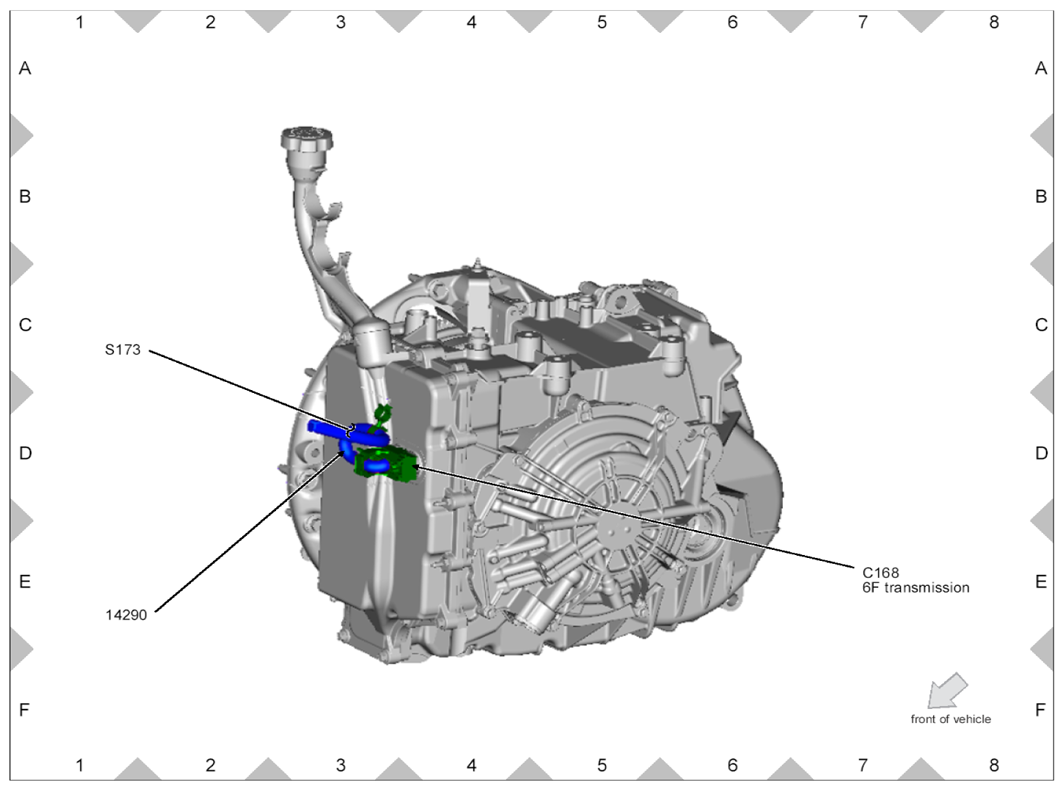

Fig 8: Transmission Wiring Harness Connectors Location

G07906546

Courtesy of FORD MOTOR CO.

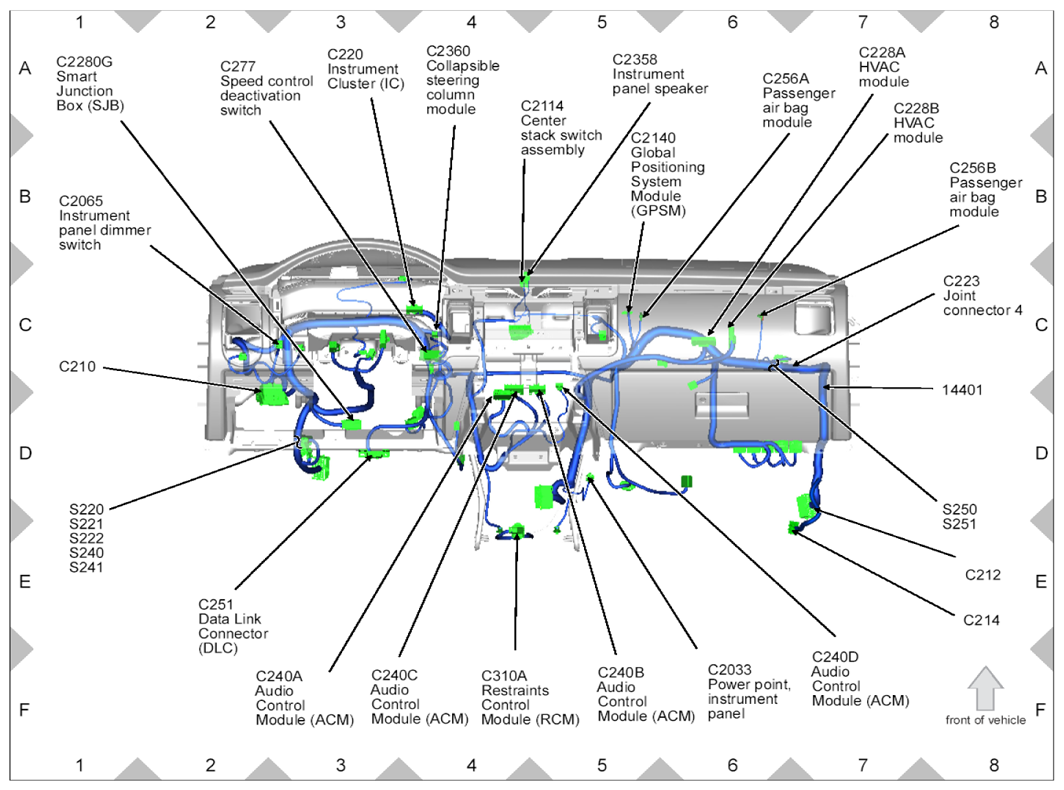

Fig 9: Front Dash Board Wiring Harness Connectors Location (1 Of 2)

G07906547

Courtesy of FORD MOTOR CO.

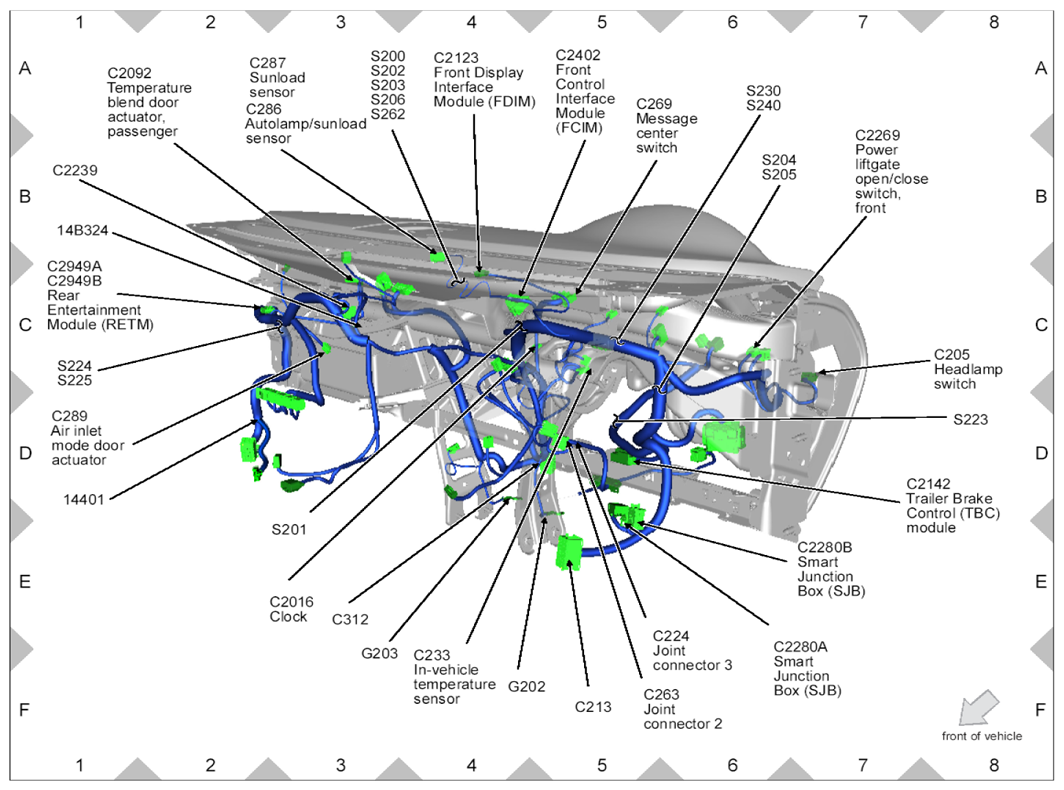

Fig 10: Front Dash Board Wiring Harness Connectors Location (2 Of 2)

G07906548

Courtesy of FORD MOTOR CO.

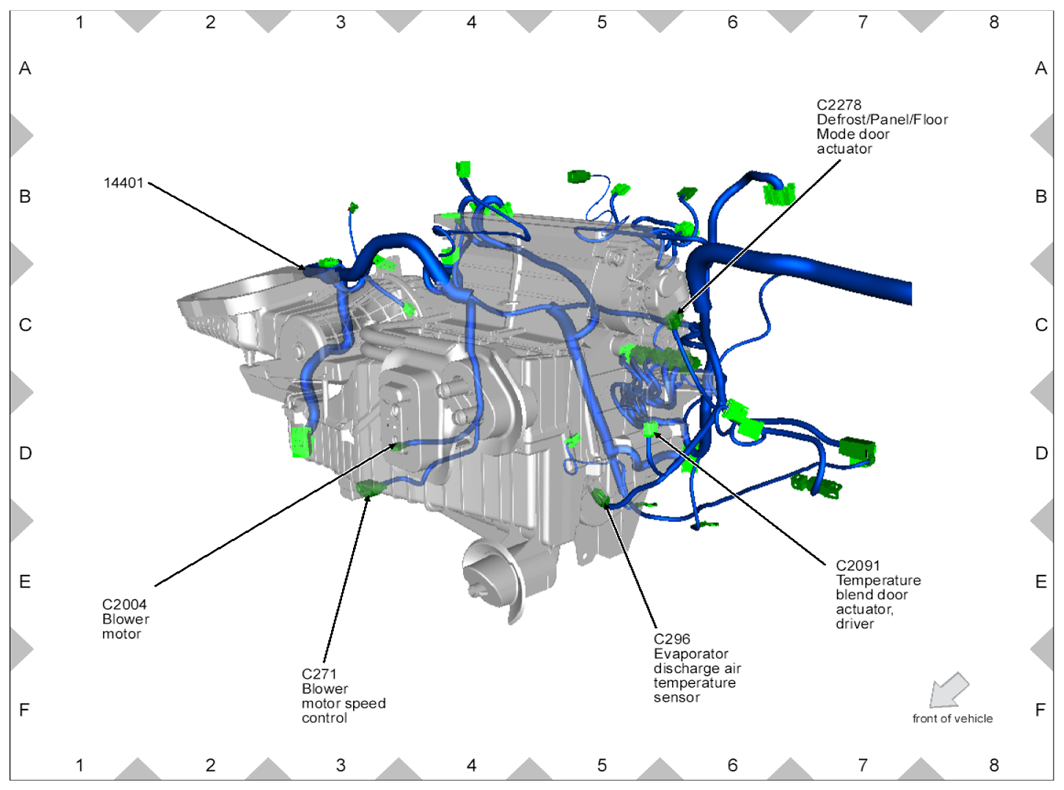

Fig 11: HVAC System Wiring Harness Connectors Location

G07906549

Courtesy of FORD MOTOR CO.

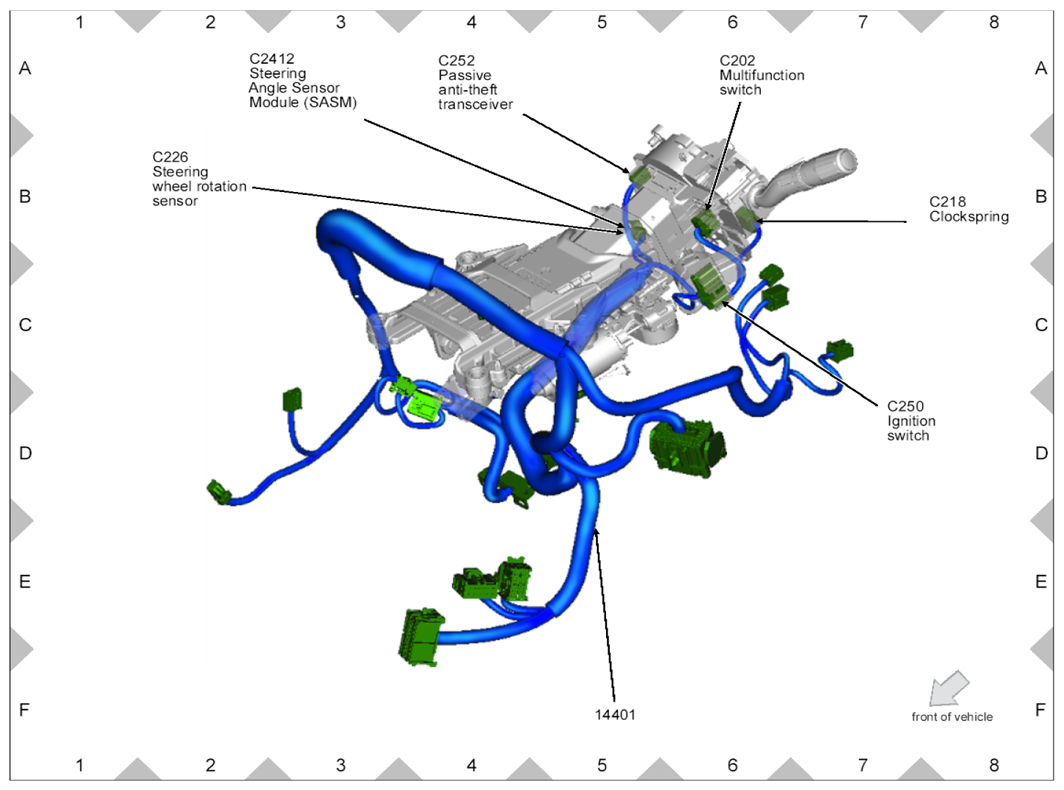

Fig 12: Steering Wiring Harness Connectors Location

G07906550

Courtesy of FORD MOTOR CO.

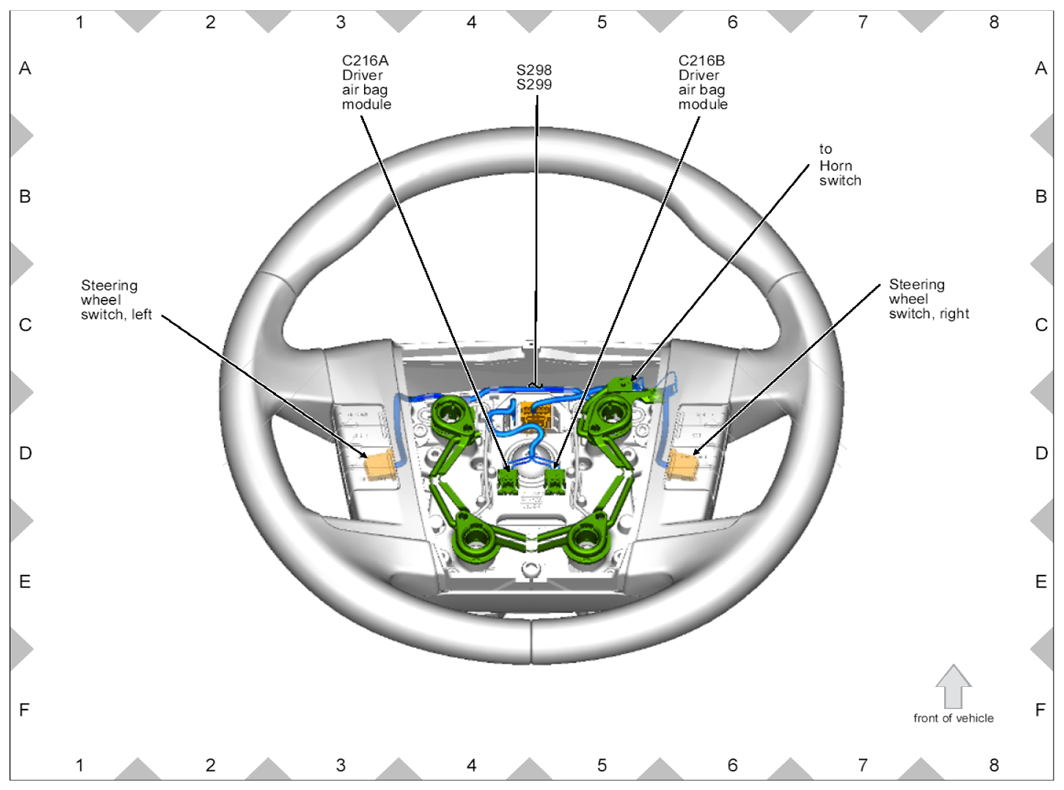

Fig 13: Steering Wheel Wiring Harness Connectors Location

G07906551

Courtesy of FORD MOTOR CO.

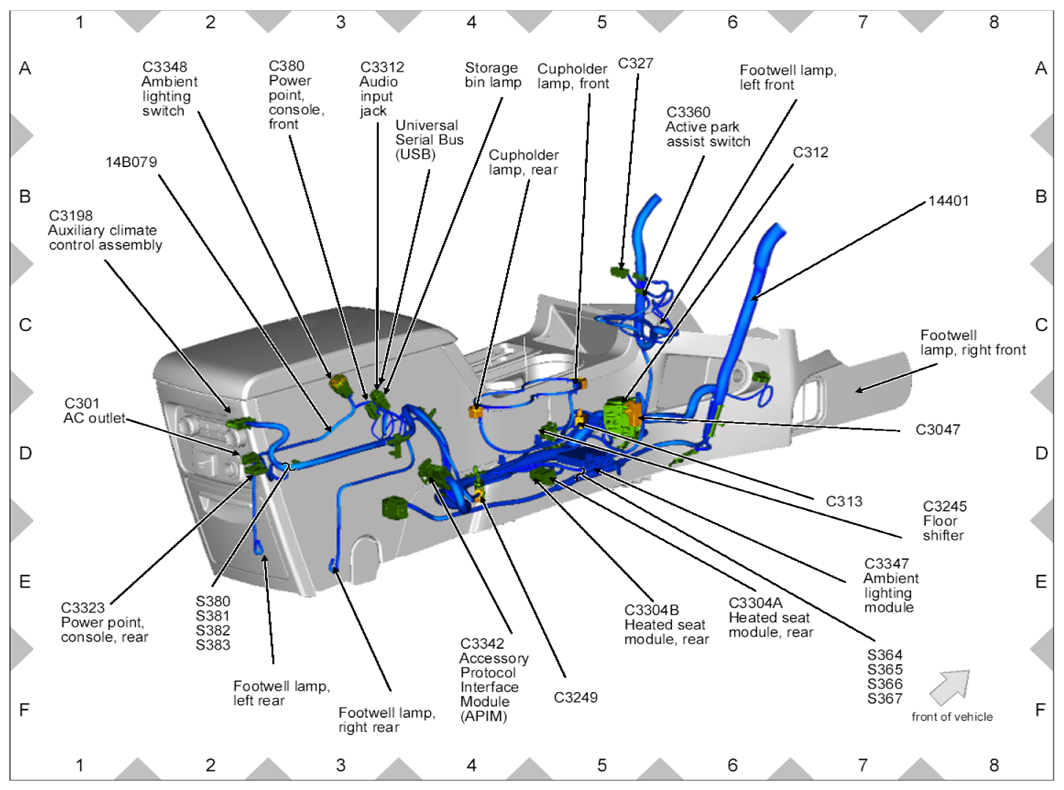

Fig 14: Center Console Wiring Harness Connectors Location

G07906552

Courtesy of FORD MOTOR CO.

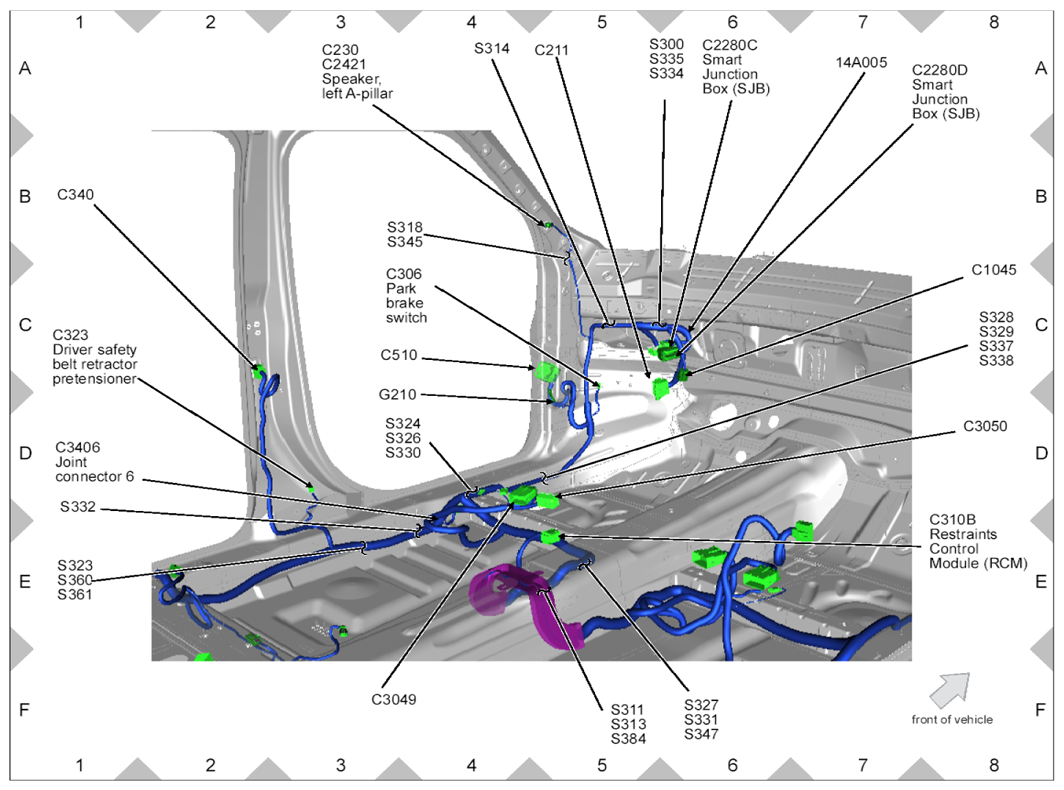

Fig 15: LH Front Inner Compartment Wiring Harness Connectors Location

G07906553

Courtesy of FORD MOTOR CO.

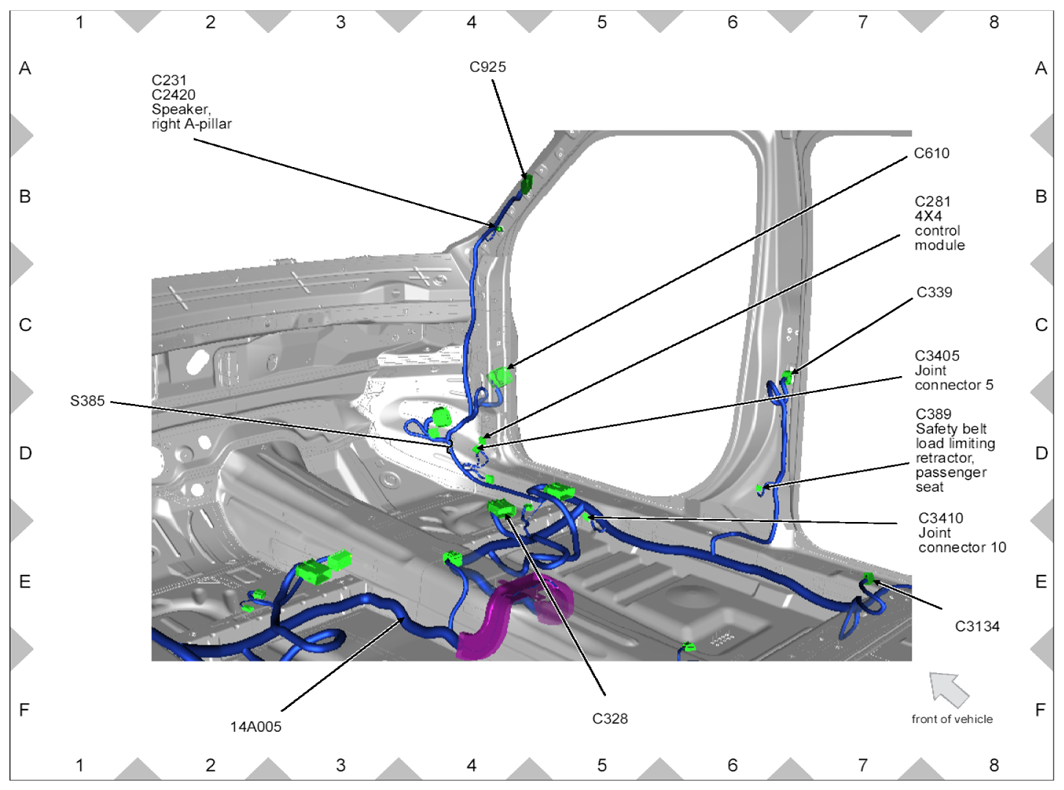

Fig 16: RH Front Inner Compartment Wiring Harness Connectors Location

G07906554

Courtesy of FORD MOTOR CO.

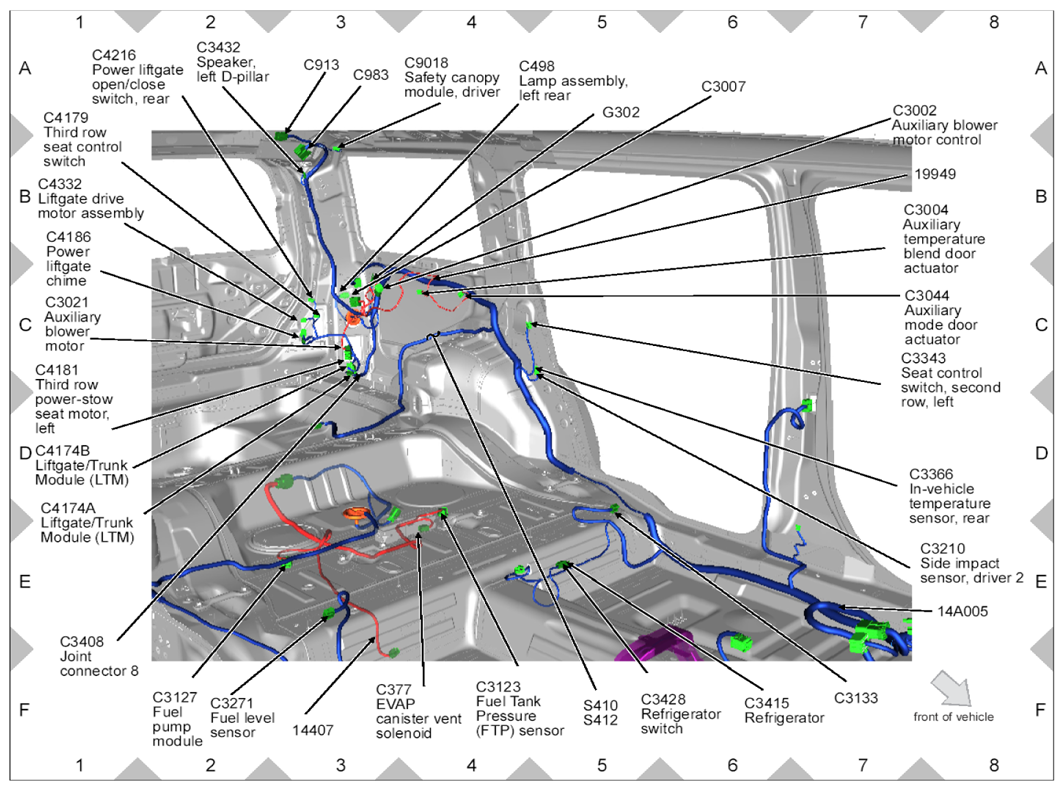

Fig 17: LH Rear Compartment Wiring Harness Connectors Location

G07906555

Courtesy of FORD MOTOR CO.

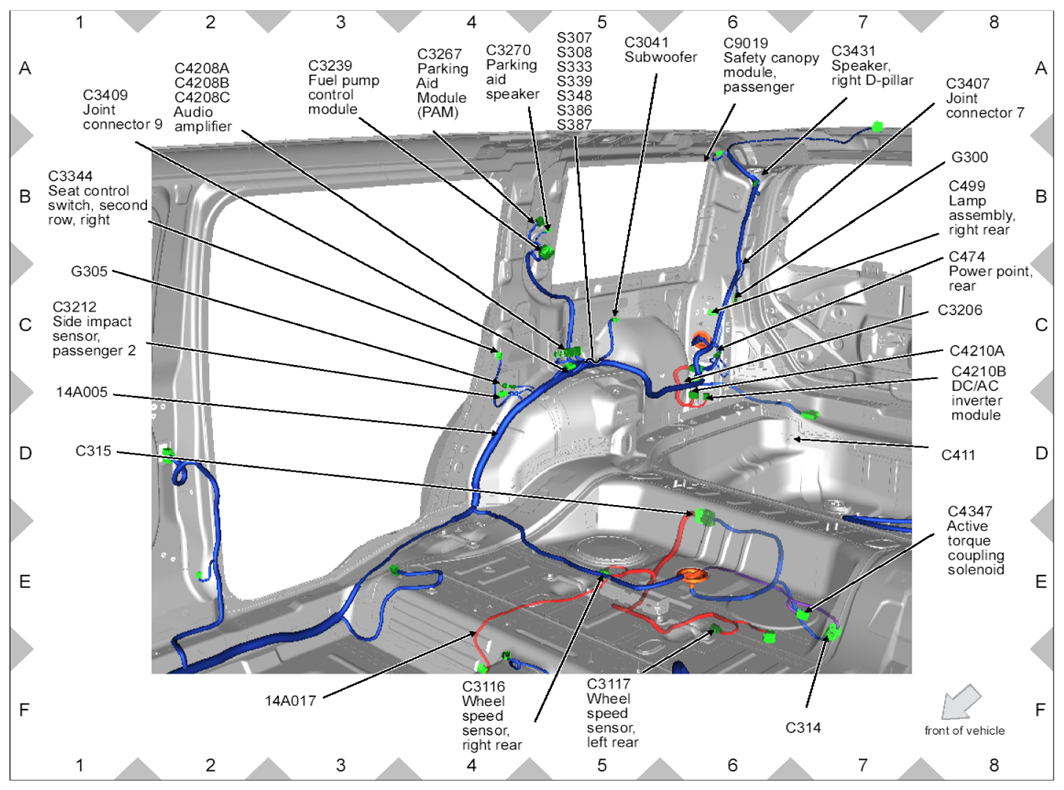

Fig 18: RH Rear Compartment Wiring Harness Connectors Location

G07906556

Courtesy of FORD MOTOR CO.

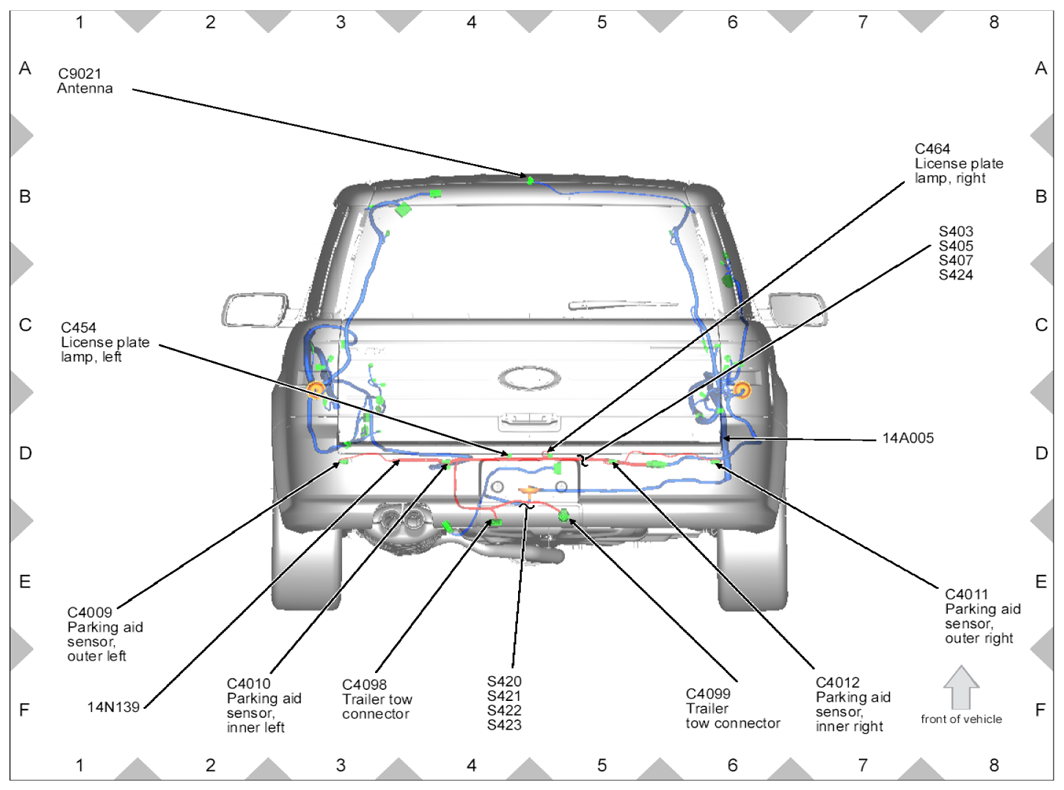

Fig 19: Back Door Wiring Harness Connectors Location

G07906557

Courtesy of FORD MOTOR CO.

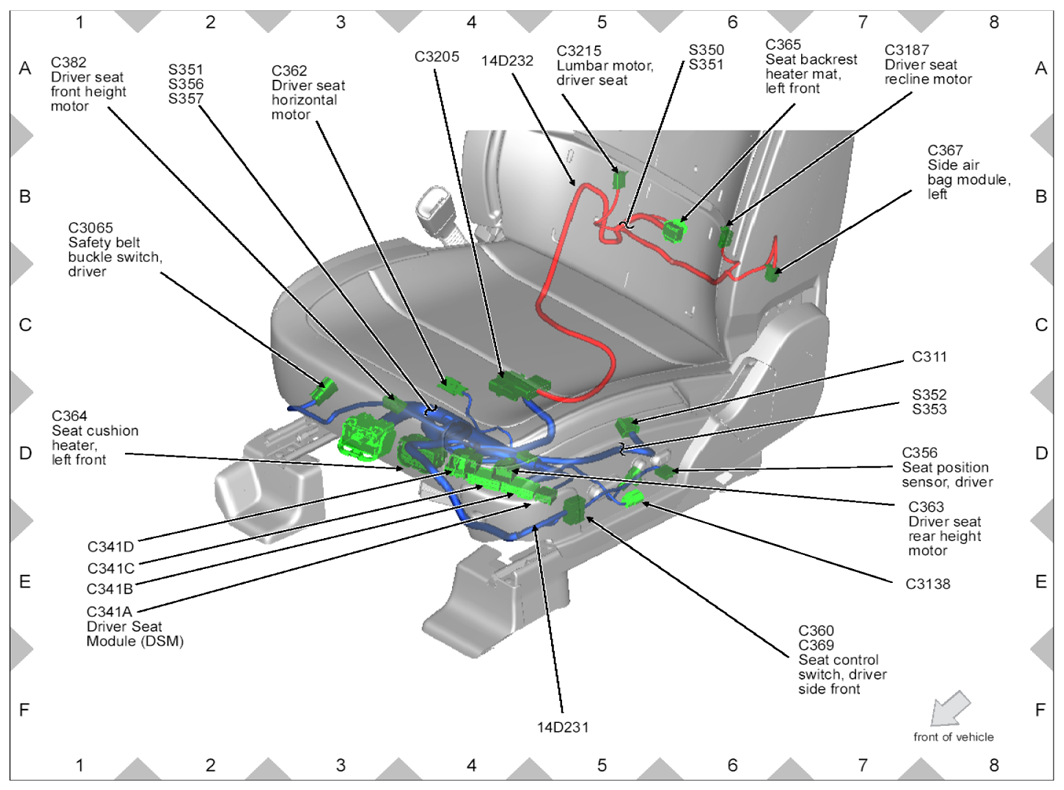

Fig 20: Driver Seat Wiring Harness Connectors Location

G07906558

Courtesy of FORD MOTOR CO.

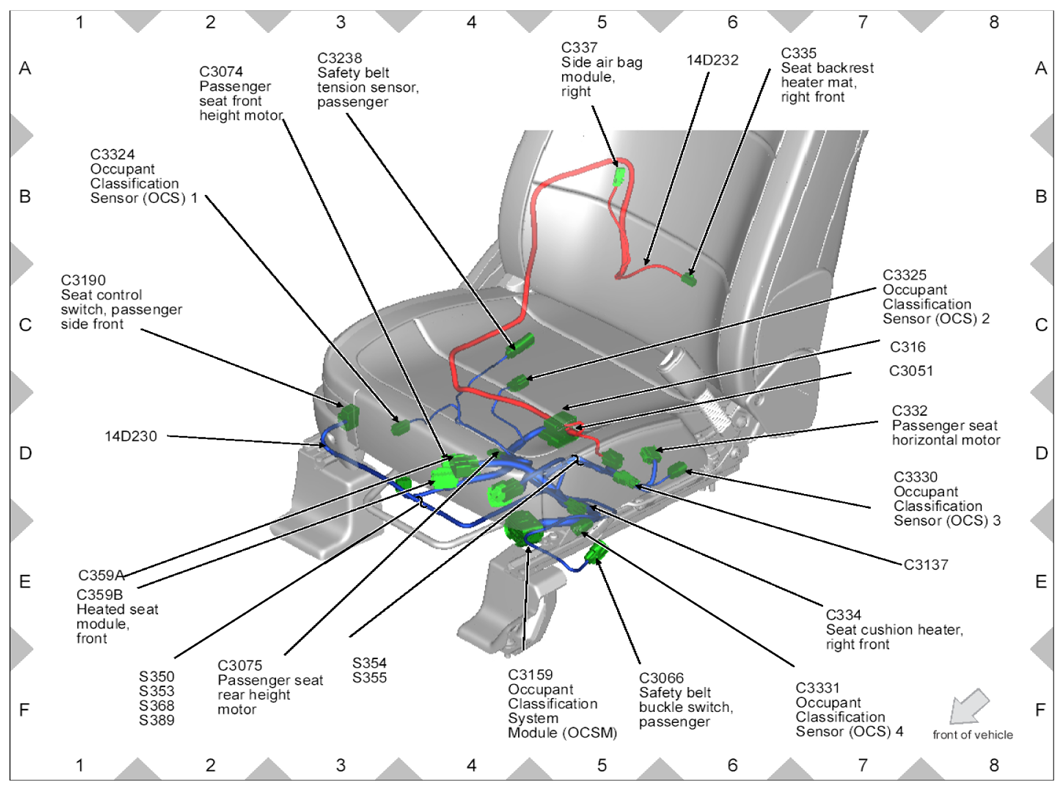

Fig 21: Passenger Seat Wiring Harness Connectors Location

G07906559

Courtesy of FORD MOTOR CO.

Fig 22: Second Row Seat Wiring Harness Connectors Location (1 Of 2)

G07906560

Courtesy of FORD MOTOR CO.

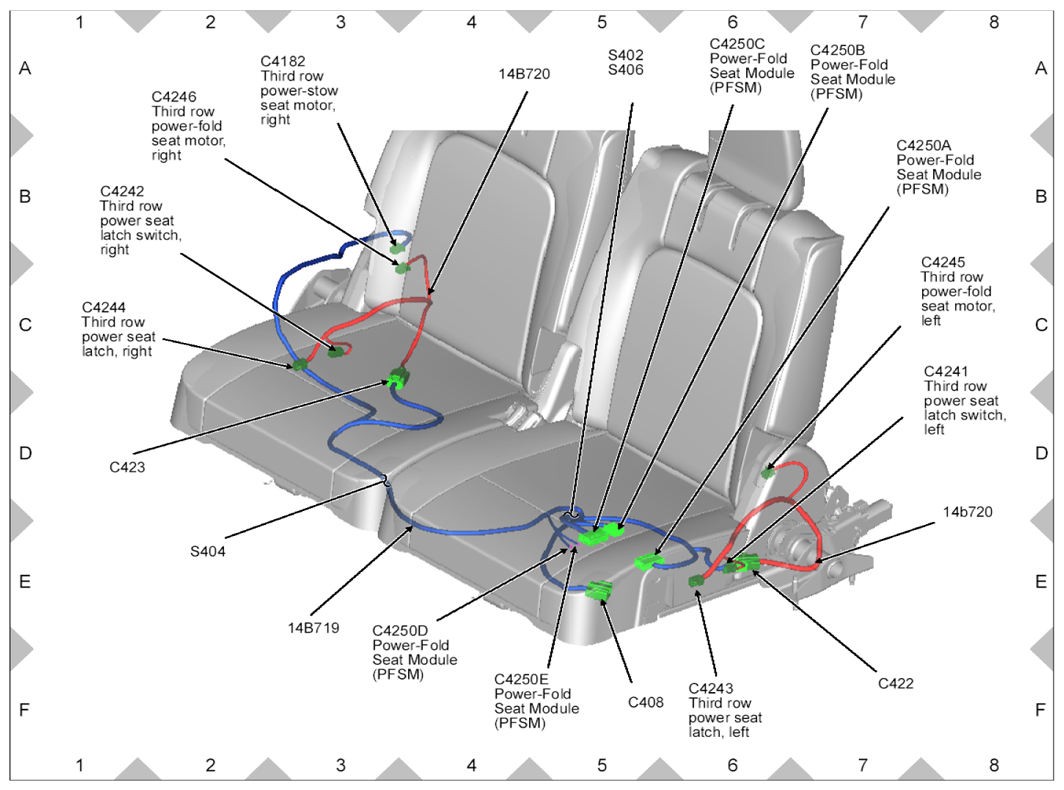

Fig 23: Second Row Seat Wiring Harness Connectors Location (2 Of 2)

G07906561

Courtesy of FORD MOTOR CO.

Fig 24: LH Front Door Wiring Harness Connectors Location

G07906562

Courtesy of FORD MOTOR CO.

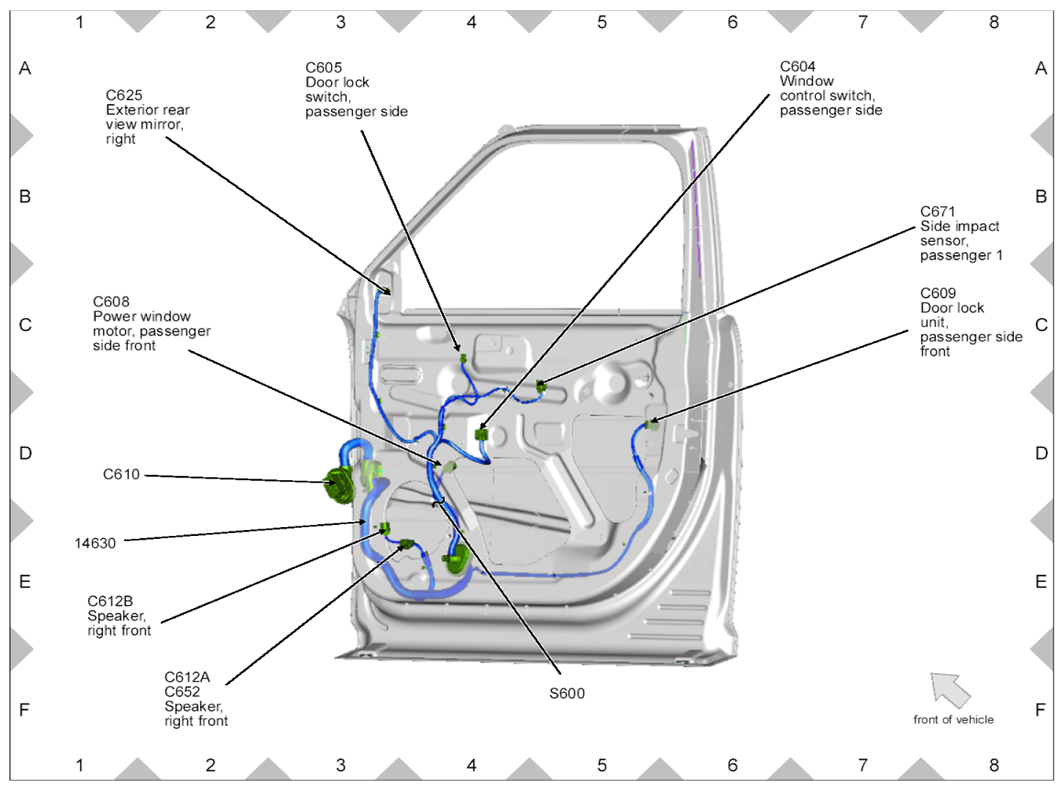

Fig 25: RH Front Door Wiring Harness Connectors Location

G07906563

Courtesy of FORD MOTOR CO.

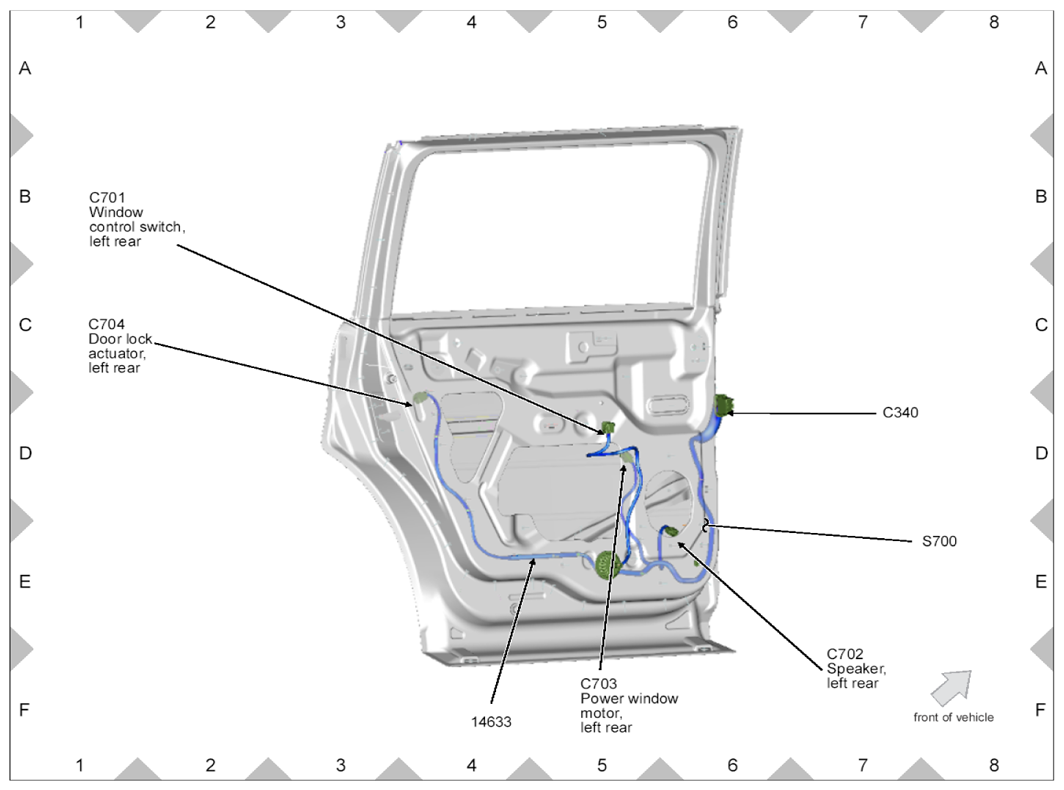

Fig 26: LH Rear Door Wiring Harness Connectors Location

G07906564

Courtesy of FORD MOTOR CO.

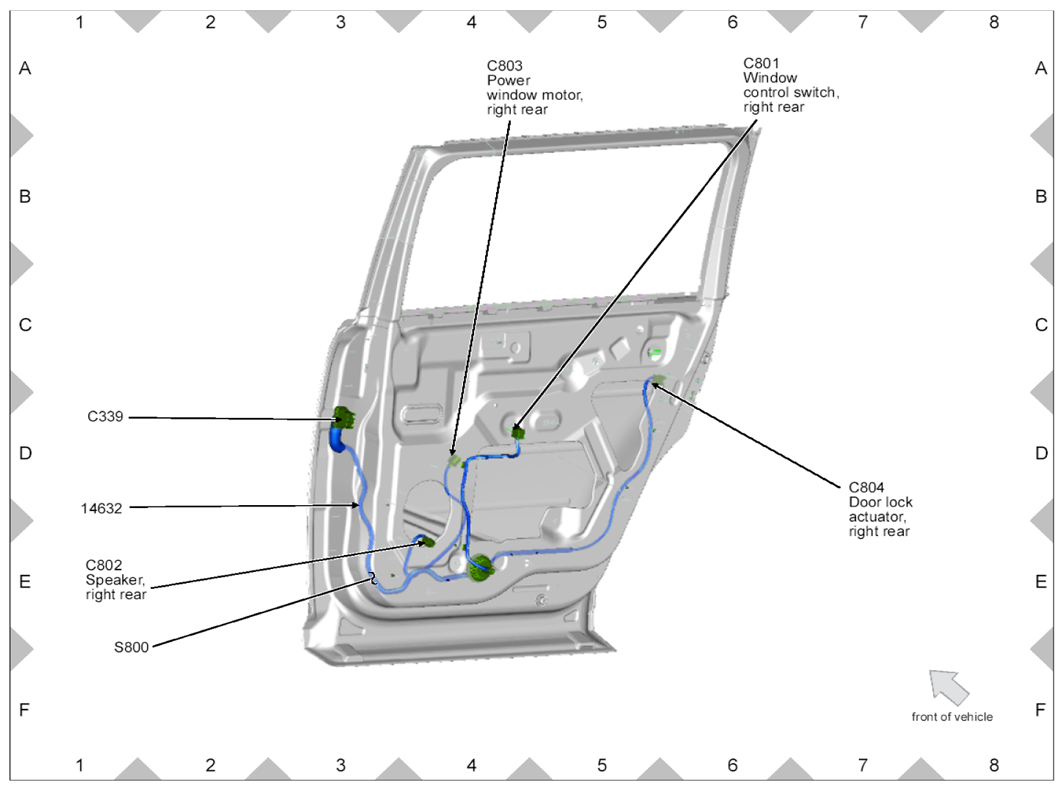

Fig 27: RH Rear Door Wiring Harness Connectors Location

G07906565

Courtesy of FORD MOTOR CO.

Fig 28: Back Door Wiring Harness Connectors Location

G07906566

Courtesy of FORD MOTOR CO.

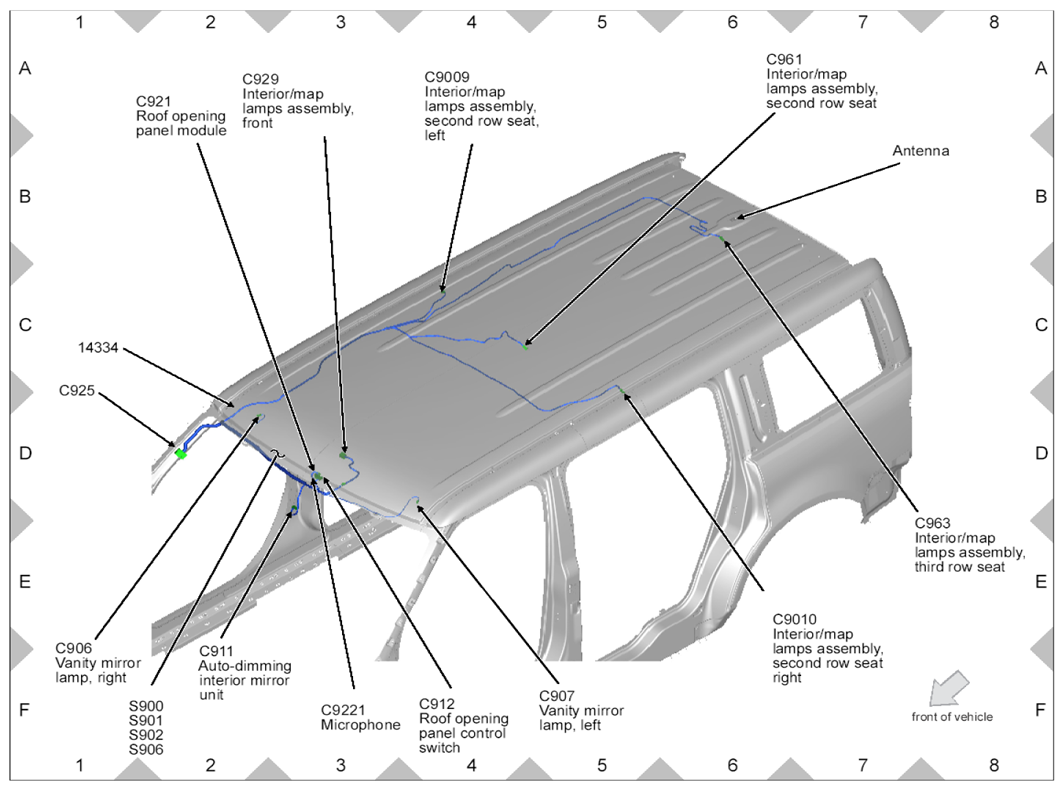

Fig 29: Roof Wiring Harness Connectors Location

G07906567

Courtesy of FORD MOTOR CO.

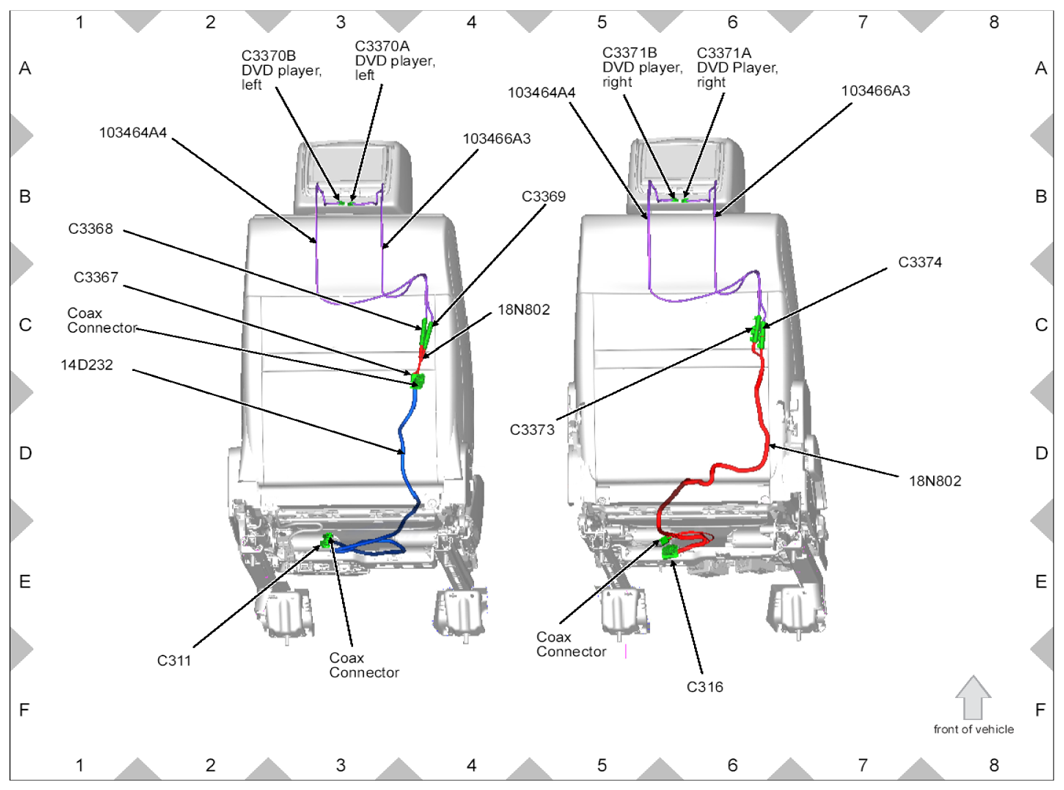

Fig 30: Seat Headrest DVD Player Wiring Harness Connectors Location

G07906568

Courtesy of FORD MOTOR CO.
