Main Control Components

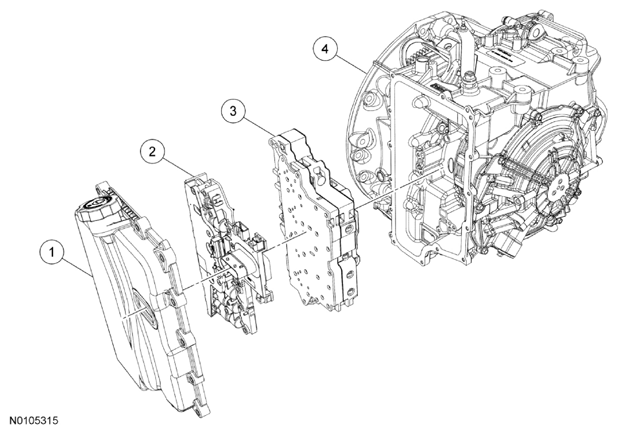

Fig 1: Identifying Main Control Valve Body, Cover Assembly, Solenoid Body And Transaxle Case
G08042722Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7G004 Main control cover assembly
2 7Z369 Solenoid body
3 7A100 Main control valve body
4 7005 Transaxle case
