Main Control Valve Body: Removal

  1. Remove the main control cover.
  2. Disconnect the Transmission Range (TR) sensor electrical connector.
    1. Slide the lock over.
    2. Press the tab and disconnect the connector.
    Fig 1: Location of Transmission Range Sensor Electrical Connector
    G08042892Courtesy of FORD MOTOR CO.
  3. Disconnect the Turbine Shaft Speed (TSS) and Output Shaft Speed (OSS) sensor electrical connectors.
    Fig 2: Location of Turbine Shaft Speed And Output Shaft Speed Sensor Electrical Connectors
    G08042893Courtesy of FORD MOTOR CO.
  4. NOTE: Note the location of the different length bolts for assembly.

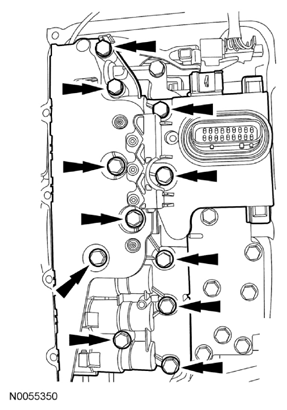

    Fig 3: Location of Bolts
    G08042894Courtesy of FORD MOTOR CO.
  5. Remove the 11 bolts and the solenoid body.
  6. NOTE: Do not handle the solenoid body in the leadframe area or by the screens of the solenoid body filter or damage to the solenoid body may occur.
    NOTE: Use care not to break the alignment tabs when installing the solenoid body filter. Damage to the transaxle will occur if the solenoid body is not correctly aligned.
    Fig 4: Location of Solenoid Body Filter Assembly
    G08042895Courtesy of FORD MOTOR CO.
  7. Remove the solenoid body filter assembly by pulling it straight up from the alignment tabs. Discard the filter.
  8. Remove the 10 bolts, the TR sensor detent spring and the main control valve body.

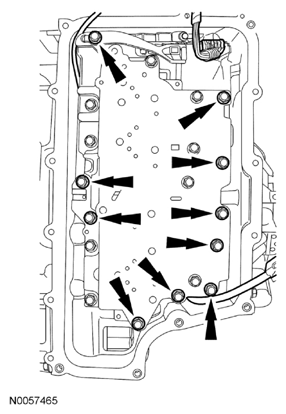

Fig 5: Location of TR Sensor Detent Spring And Control Valve Body Bolts
G08042896Courtesy of FORD MOTOR CO.
