Transaxle Support Insulator - Anti-Roll: Notes

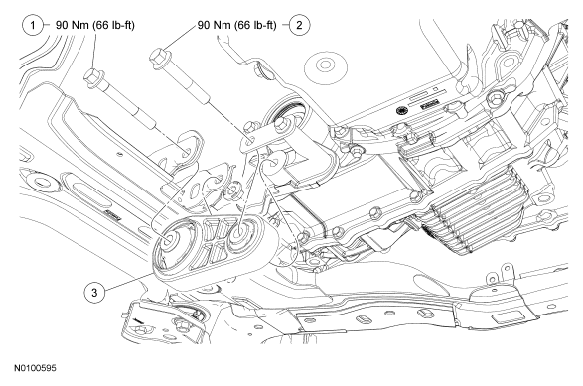

Fig 1: Exploded View Of Transaxle Support Insulator (Anti-Roll) With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W706674
Rear roll restrictor bolt
2
W500545
Front roll restrictor bolt
3
6P082
Roll restrictor assembly
