Transaxle Support Insulator: Notes

SPECIAL TOOLS

Support Bar, Engine 303-F072

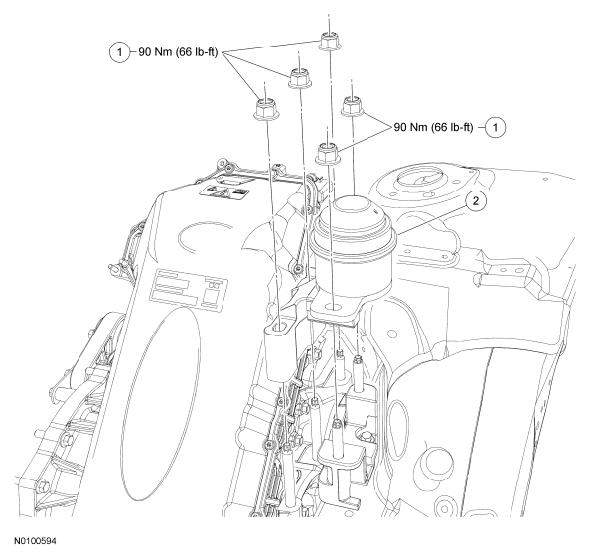

Fig 1: Exploded View Of Transaxle Support Insulator

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520214	Transaxle support insulator nuts
2	14A464	Transaxle support insulator
