Powertrain Control Module (PCM): Notes

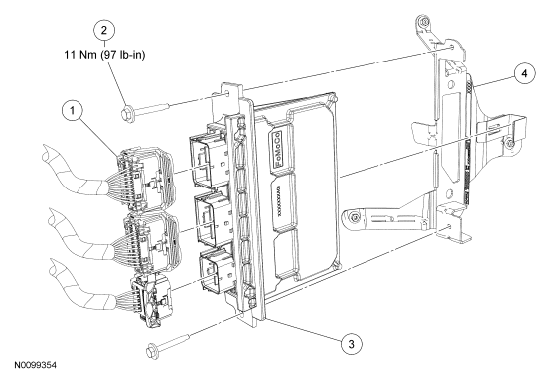

Fig 1: Exploded View Of Powertrain Control Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCM electrical connector (3 required)
2	W505428	PCM bolt (2 required)
3	12A650	PCM
4	12A659	PCM bracket
