Wheel Speed Sensor - Front: Notes

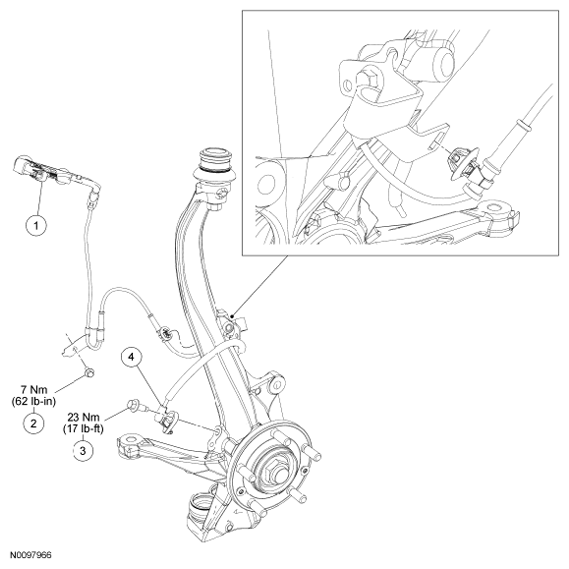

Fig 1: Exploded View Of Wheel Speed Sensor - Front With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 14290)
2	W500020	Wheel speed sensor harness bracket-to-body bolt
3	W500222	Wheel speed sensor bolt
4	2C204 RH/2C205 LH	Wheel speed sensor
