Wheel Speed Sensor - Rear, All Wheel Drive (AWD): Notes

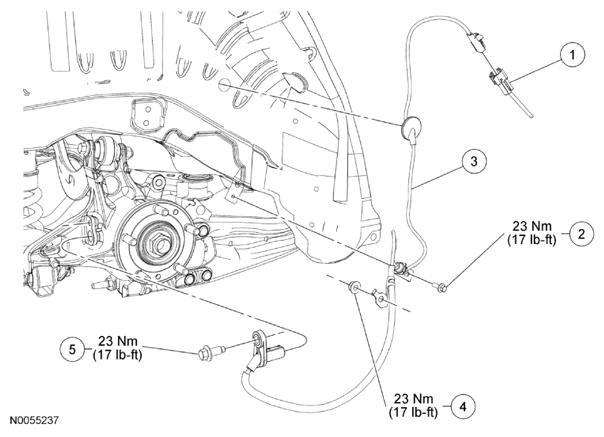

Fig 1: Exploded View Of Wheel Speed Sensor - Rear, All Wheel Drive (AWD) With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 14A227)
2	W505253	Wheel speed sensor harness bolt
3	2C186 RH/2C187 LH	Wheel speed sensor
4	W520102	Wheel speed sensor harness nut
5	W500222	Wheel speed sensor bolt
