Power door lock switch: Schematic

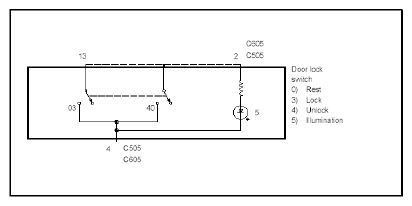

Fig 1: Power Door Lock Switch - Component Testing
G07922842Courtesy of FORD MOTOR CO.
