Roof opening panel switch: Terminals

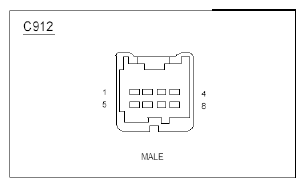

Fig 1: Identifying C912 Connector Terminals
G07922845Courtesy of FORD MOTOR CO.
