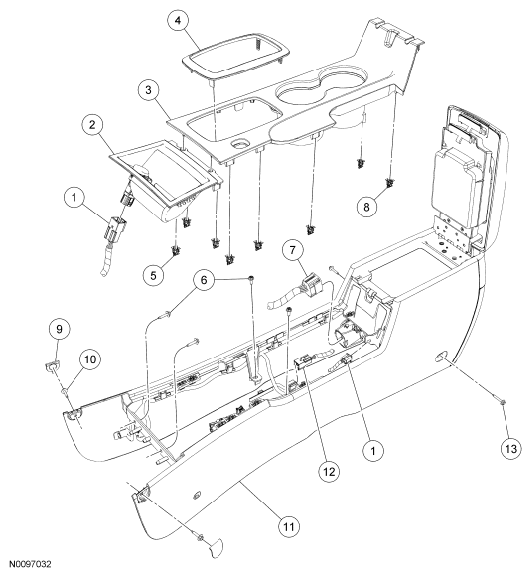

| 1 |
14401 |
Power point connectors |
| 2 |
- |
Utility tray (part of 011202) |
| 3 |
045A76 |
Floor console finish panel |
| 4 |
061A16 |
Selector lever trim ring |
| 5 |
- |
Utility tray retaining clip (part of 045A76) (2 required) |
| 6 |
W709955 |
Floor console screws (4 required) |
| 7 |
14401 |
Bulkhead electrical connector |
| 8 |
- |
Floor console finish panel retaining clip (part of 045A76) (6 required) |
| 9 |
672A40 |
Floor console screw cover (2 required) |
| 10 |
W711401 |
Floor console front screw (2 required) |
| 11 |
011202 |
Floor console |
| 12 |
14401 |
Ambient light electrical connector |
| 13 |
W711401 |
Floor console rear screw (2 required) |
