Passenger Air Bag Module: Notes

NOTE: Fusion shown in illustration, MKZ similar.

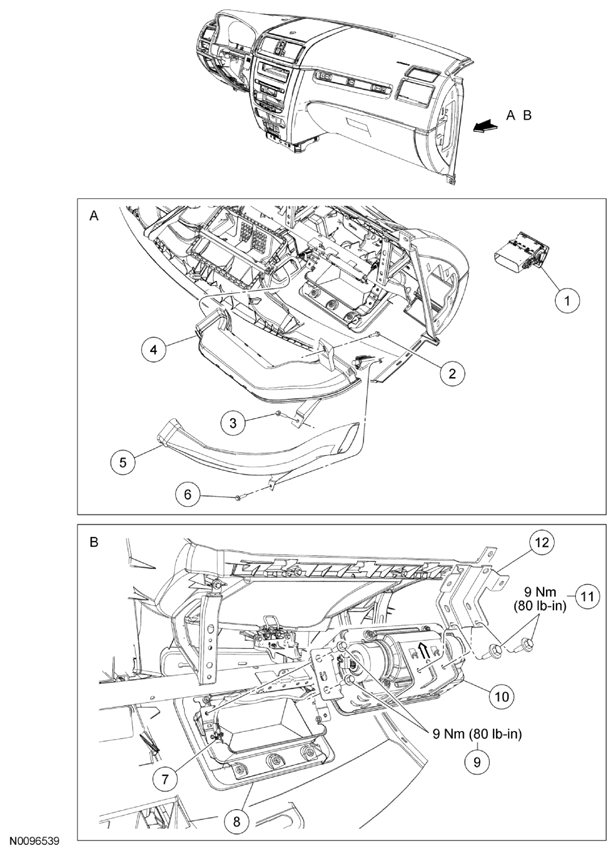

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	19893	RH instrument panel register
2	-	Screw
3	-	Screw
4	19B680	Ventilation duct
5	19B680	Defroster duct
6	-	Screw
7	-	Passenger air bag module electrical connector (part of 14401) (2 required)
8	-	Passenger air bag module deployment chute (part of instrument panel)
9	W505253	Passenger air bag module-to-deployment chute bolts (4 required)
10	044A74	Passenger air bag module
11	W505253	Passenger air bag module bracket bolts (2 required)
12	-	Passenger air bag module bracket (part of 044A74)
