Side Air Bag Module: Notes

NOTE: Drivers seat shown in illustration, passenger seat similar.

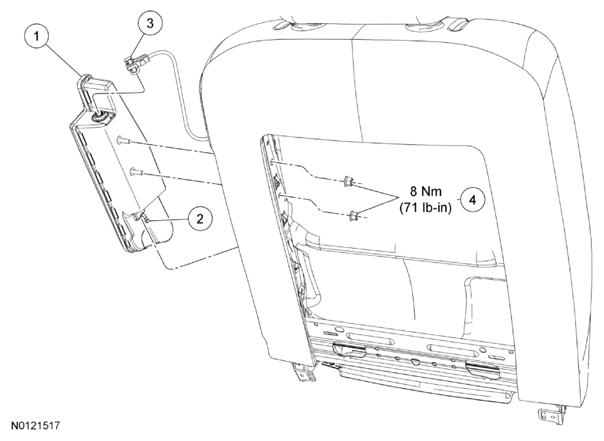

Fig 1: Side Air Bag Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611D10	Side air bag module
2	-	Side air bag module locator hook (part of 611D10)
3	-	Side air bag module electrical connector (part of 14K155)
4	N620480	Side air bag module nuts (2 required)
