Final Drive Component Exploded View

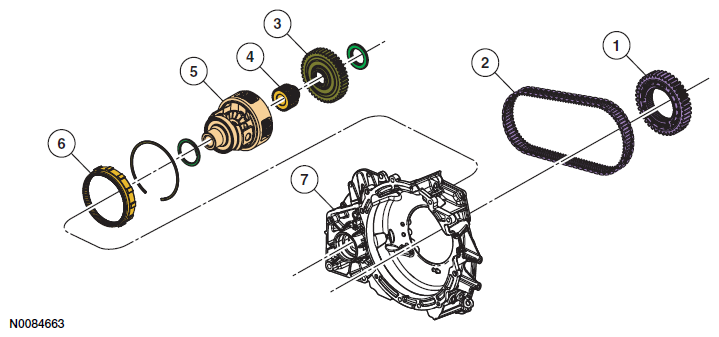

Fig 1: Exploded View Of Final Drive Component

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7G132	Drive chain drive sprocket
2	7G249	Drive chain
3	7G132	Drive chain driven sprocket
4	7F342	Final drive planetary sun gear
5	7F465	Differential assembly
6	7F343	Final drive planetary ring gear
7	7975	Torque converter housing
