2nd Gear: Notes

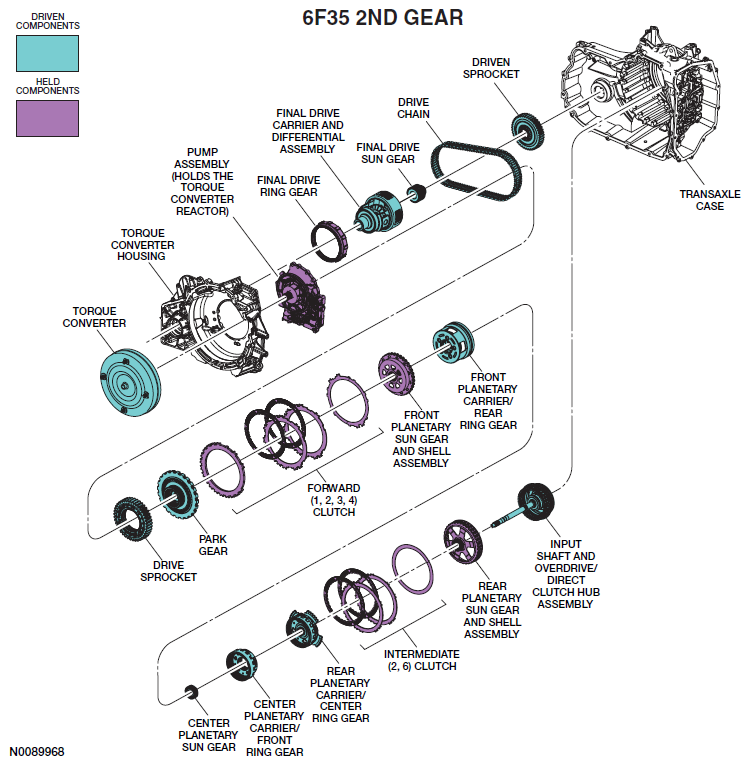

Fig 1: Exploded View Of Transaxle (6F35 2nd Gear)
G06096903Courtesy of FORD MOTOR CO.
