3rd Gear: Notes

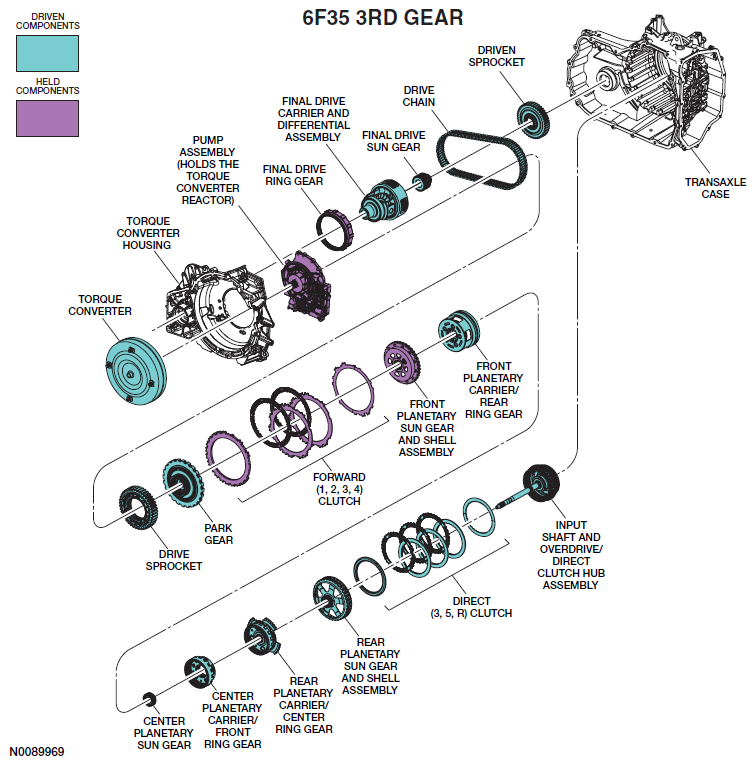

Fig 1: Exploded View Of Transaxle (6F35 3rd Gear)
G06096906Courtesy of FORD MOTOR CO.
