Park Position: Notes

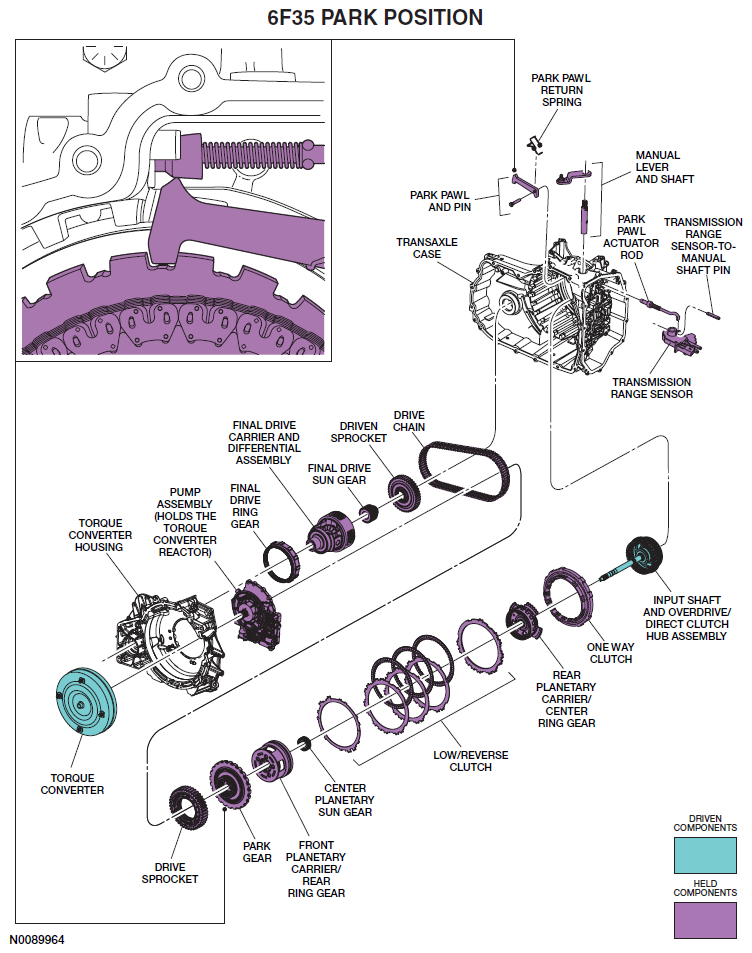

Fig 1: Exploded View Of 6F35 Park Position (Transaxle)
G06096891Courtesy of FORD MOTOR CO.
