Turbine Shaft Speed (TSS) Sensor: Notes

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® MERCON® LV Automatic Transmission Fluid XT-10-QLVC	MERCON® LV

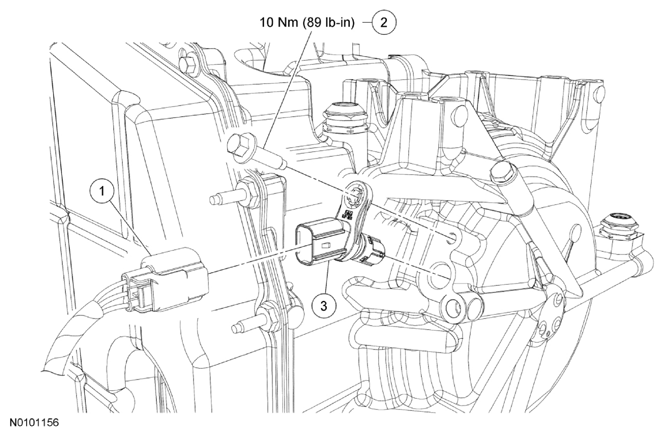

Fig 1: TSS Sensor, Connector And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Turbine Shaft Speed (TSS) sensor electrical connector
2	W500214	TSS sensor bolt
3	7M101	TSS sensor
