Brake Shift Interlock Override

NOTE: If it is necessary to use the override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify that the brake lights are working.
This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of PARK when the ignition is in the ON position unless the brake pedal is depressed.
If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is depressed, carry out the following procedure.

Fusion

  1. Apply the parking brake.
  2. Remove the selector lever trim ring.

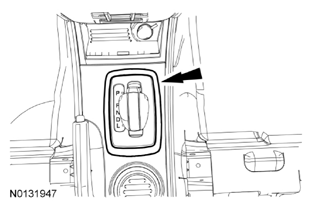

    Fig 1: Location of Selector Lever Trim Ring
    G08024220Courtesy of FORD MOTOR CO.
  3. Remove the center console trim panel
    Fig 2: Location of Center Console Trim Panel
    G06275754Courtesy of FORD MOTOR CO.
  4. NOTE: Vehicles equipped with a 3.0L/3.5L shown in illustration, vehicles equipped with a 2.5L similar.

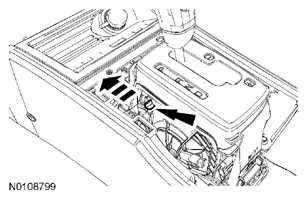

    Fig 3: Pushing Brake Shift Interlock Override Forward
    G07786306Courtesy of FORD MOTOR CO.
  5. Using a suitable tool, push the brake shift interlock override forward, apply the brake, press the selector lever knob button and move the selector lever into NEUTRAL.
  6. Start the vehicle.
  7. Install the center console trim panel.
    Fig 4: Location of Center Console Trim Panel
    G06275754Courtesy of FORD MOTOR CO.
  8. Install the selector lever trim ring.
    Fig 5: Location of Selector Lever Trim Ring
    G08024220Courtesy of FORD MOTOR CO.

    MKZ

  9. Remove the access panel.
    Fig 6: Location of Access Panel Hole
    G06275646Courtesy of FORD MOTOR CO.
  10. Insert a suitable tool into the access hole, depress the brake shift interlock override mechanism on the selector lever, apply the brake, depress the button on the selector lever knob and move the selector lever into NEUTRAL.

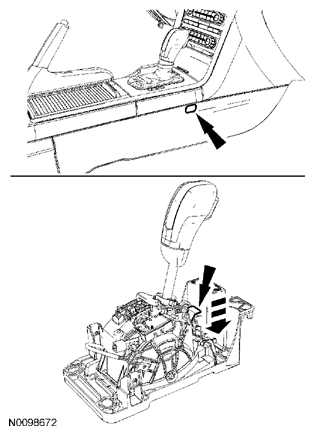

    Fig 7: Depressing Brake Shift Interlock Override Mechanism
    G07786310Courtesy of FORD MOTOR CO.
  11. Start the vehicle.
  12. Install the access panel.
    Fig 8: Location of Access Panel Hole
    G06275646Courtesy of FORD MOTOR CO.
