Selector Lever - Fusion: Notes

NOTE: Transmission Control Switch (TCS) selector lever shown in illustration, SelectShift™ selector lever similar.

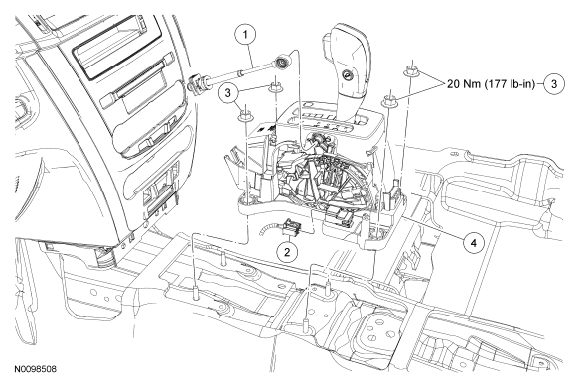

Fig 1: Exploded View Of Selector Lever With Torque Specifications (Fusion)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7E395	Selector lever cable
2	14489	Selector lever electrical connector
3	W714098	Selector lever nuts (4 required)
4	7K004	Selector lever assembly
