Input Shaft: Notes
SPECIAL TOOLS
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-A) |
|
| Installer, Differential Bearing Cup 308-155 (T88C-7025-DH) |
|
| Installer, Transaxle Bearing Cone 307-181 (T87C-77000-D) |
|
| Plate, Bearing/Oil Seal 205-090 (T75L-1165-B) |
|
| Puller, Bearing 205-D064 (D84L-1123-A) or equivalent |
|
| Shaft Protector Set 205-DS004 (D80L-625-A) or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| SAE 75W-90 API GL-4 Gear Oil XT-4-QGL |
WSS-M2C203-A1 |

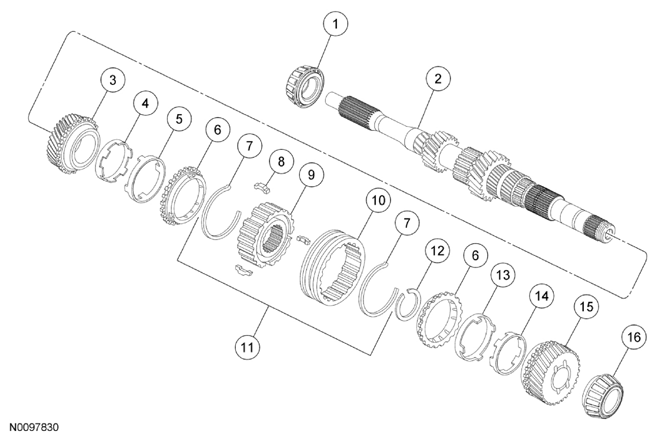

| Item | Part Number | Description |
|---|---|---|
| 1 | 7025 | Bearing |
| 2 | 7017 | Input shaft |
| 3 | 7101 | 3rd gear |
| 4 | - | Double cone (part of 7Z018) |
| 5 | - | Inner cone (part of 7Z018) |
| 6 | 7Z018 | Synchronizer blocking ring (part of blocking ring set) |
| 7 | 7109 | Synchronizer blocking springs (part of 7124) |
| 8 | 7A044 | Synchronizer hub insert (part of 7124) |
| 9 | 7105 | Synchronizer hub (part of 7124) |
| 10 | 7106 | Synchronizer sleeve (part of 7124) |
| 11 | 7124 | Synchronizer hub assembly |
| 12 | 7064 | Snap ring |
| 13 | - | Double cone (part of 7Z018) |
| 14 | - | Inner cone (part of 7Z018) |
| 15 | 7110 | 4th gear |
| 16 | 7025 | Bearing |
