Engine Lubrication Components - Exploded View

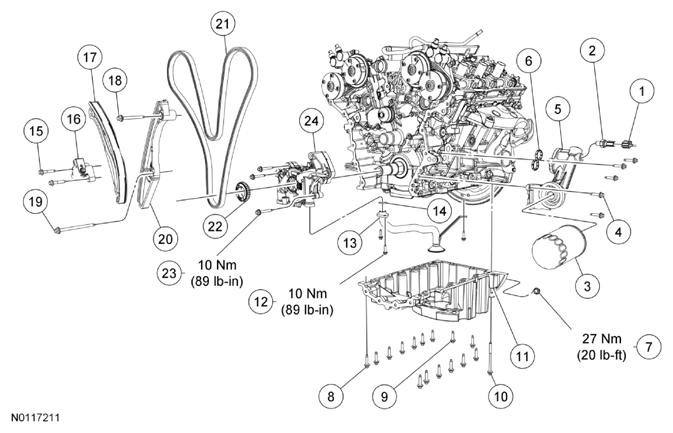

Fig 1: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Engine Oil Pressure (EOP) switch electrical connector (part of 12C508)
2	9278	EOP switch
3	6731	Engine oil filter
4	W503278	Oil filter adapter bolt (5 required)
5	6881	Oil filter adapter
6	6840	Oil filter adapter gasket
7	6730	Oil pan drain plug
8	W712943	Oil pan bolt (13 required)
9	W503279	Oil pan bolt (2 required)
10	W708221	Oil pan bolt
11	6675	Oil pan
12	W503278	Oil pump screen and pickup tube bolt (3 required)
13	6622	Oil pump screen and pickup tube
14	6625	Oil pump screen and pickup tube O-ring seal
15	N806177	Primary timing chain tensioner bolt (2 required)
16	6L266	Primary timing chain tensioner
17	6K255	RH primary timing chain tensioner arm
18	W715145	LH primary timing chain guide bolt
19	W714094	LH primary timing chain guide bolt
20	6B274	LH primary timing chain guide
21	6268	Primary timing chain
22	6306	Crankshaft timing sprocket
23	W503282	Oil pump bolt (3 required)
24	6600	Oil pump

1. Refer to the appropriate procedures and/or exploded views in this service information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
