Audio System Navigation: Notes

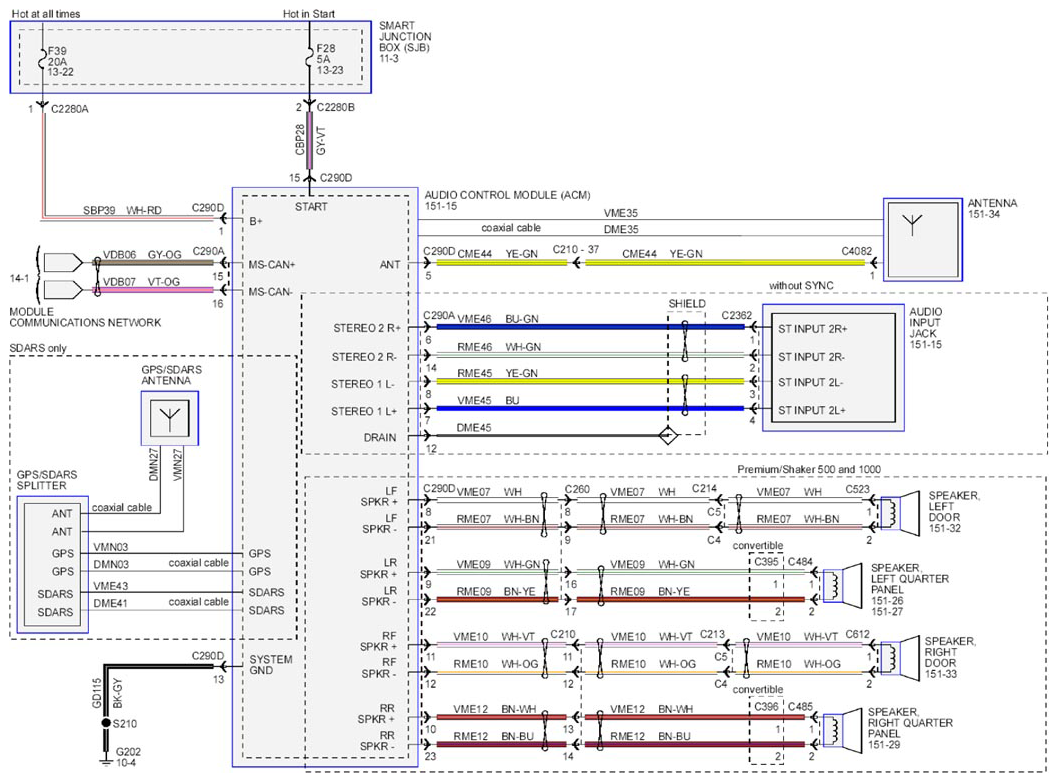

Fig 1: Audio System Navigation Circuit Diagram
G07925481Courtesy of FORD MOTOR CO.
