Seat Side Air Bag Module

NOTE: LH shown in illustration, RH similar.

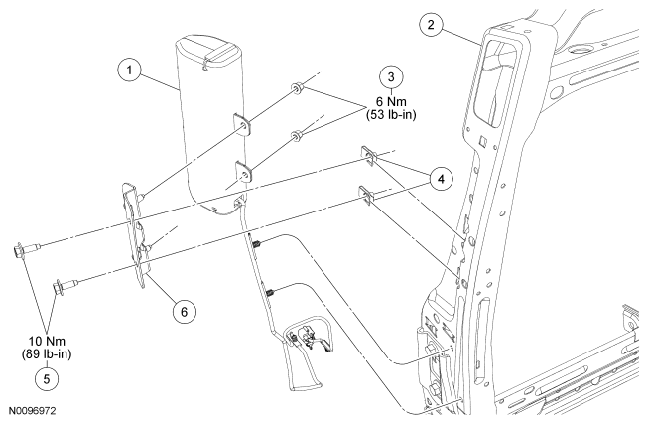

Fig 1: Exploded View Of Seat Side Air Bag Module Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	611D11	Side air bag module
2	61019	Backrest frame
3	-	Side air bag module nuts (part of 611D11)
4	W520822	U-nuts
5	W302077	Side air bag module bolts
6	611D79	Side air bag module bracket
