Diagnosis And Testing: Horn: Notes

SPECIAL TOOLS

	Fluke 77-IV Digital Multimeter FLU77-4 or equivalent
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool
	Flex Probe Kit 105-R025D or equivalent

NOTE: Front bumper shown in illustration removed for clarity.

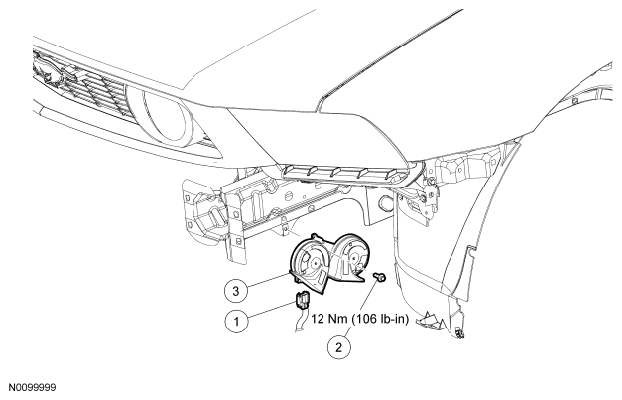

Fig 1: Horn, Bolt And Electrical Connector With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Horn electrical connector (part of 14290)
2	W710500	Horn bolt
3	13832	Horn
