Starter Motor - 3.7L: Notes

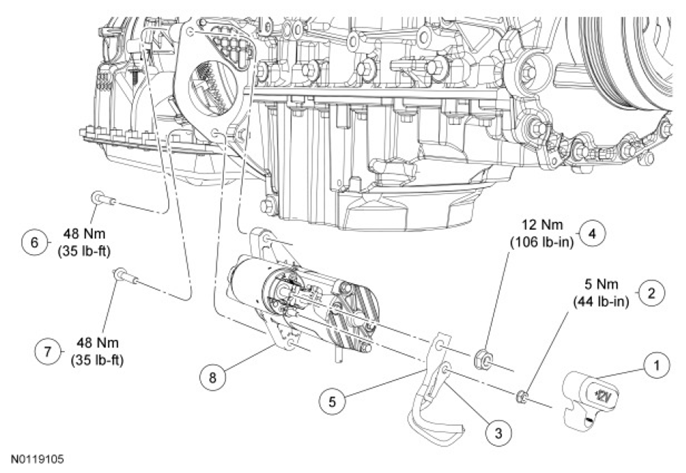

Fig 1: Exploded View Of Starter Motor With Torque Specifications (3.7L)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11N087	Starter solenoid terminal cover
2	W705790	Starter solenoid S-terminal nut
3	14463	Starter solenoid S-terminal eyelet
4	N805403	Starter solenoid B+ terminal nut
5	14463	Starter solenoid B+ terminal eyelet
6	W714290	Starter motor stud bolt (2 required)
7	11000	Starter motor
