Powertrain Control Module (PCM): Notes

SPECIAL TOOLS

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

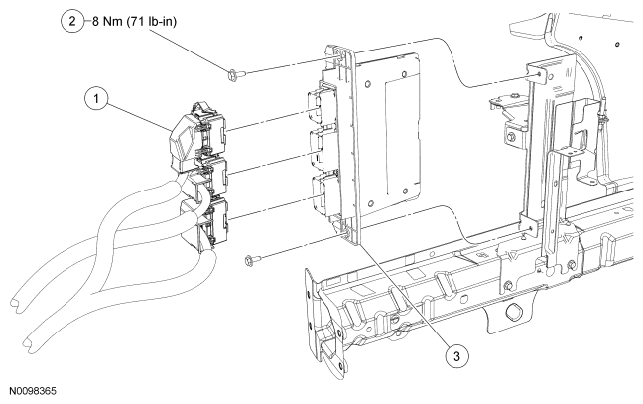

Fig 1: Powertrain Control Module (PCM) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCM electrical connector (3 required)
2	W505423	PCM bolt (2 required)
3	12A650	PCM
