Powertrain Control Module (PCM): Removal
WARNING: This page is about a different car, the 2017 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: This step is only necessary when installing a new component.
Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment
- 2.

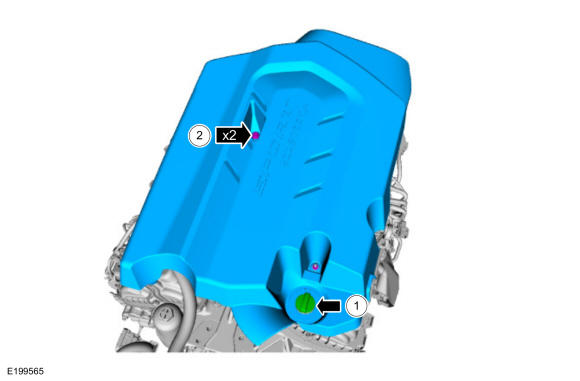

- Remove the oil filler cap.
- Remove the nut and bolt and remove the engine appearance cover.
Torque: 42 lb.in (4.8 Nm)
