Transfer Case
WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The help of an assistant will be required.

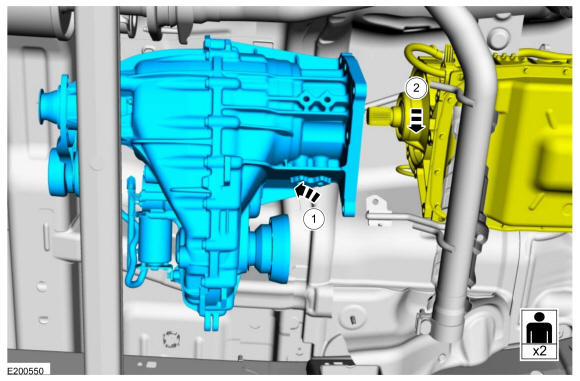

Position the transfer case on the crossmember. Lower the transmission approximately 25.4 mm (1 in).
-
NOTE: The help of an assistant will be required.

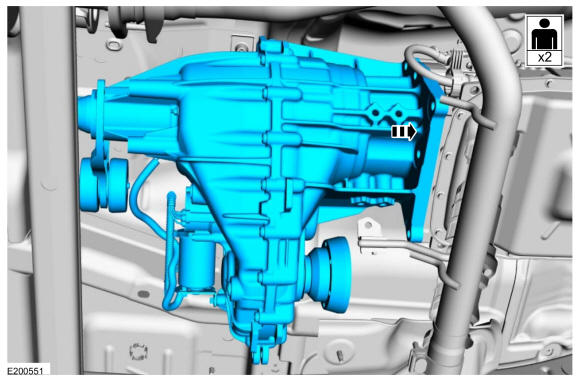

Position the transfer case to the transmission and onto the output shaft.
-
NOTE: Do not reuse the old transfer case-to-transmission bolts.

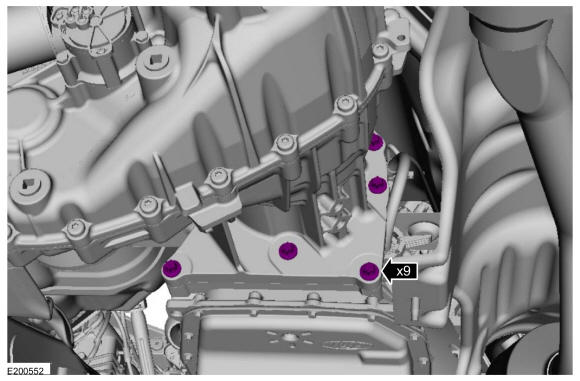

Install new transfer case-to-transmission bolts.
Torque: 168 lb.in (19 Nm)
- Refer to: Transmission Support Insulator - R680 . Refer to: Transmission Support Insulator - 10R80 .

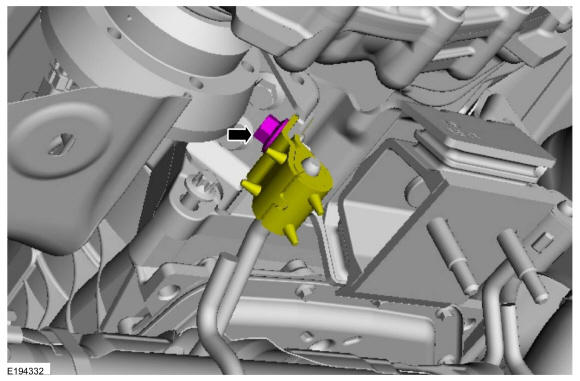

- Install the LH exhaust support bracket and bolt.
Torque: 26 lb.ft (35 Nm)
- Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

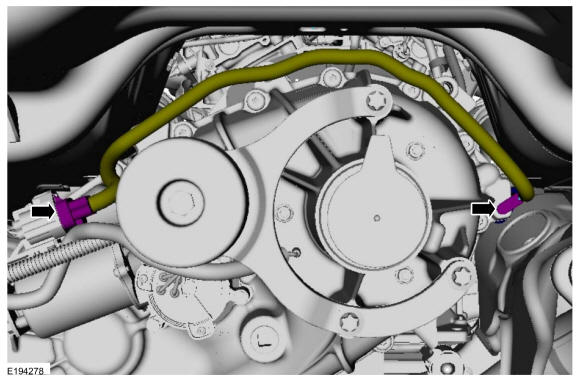

- Connect the vent hose to the transfer case.

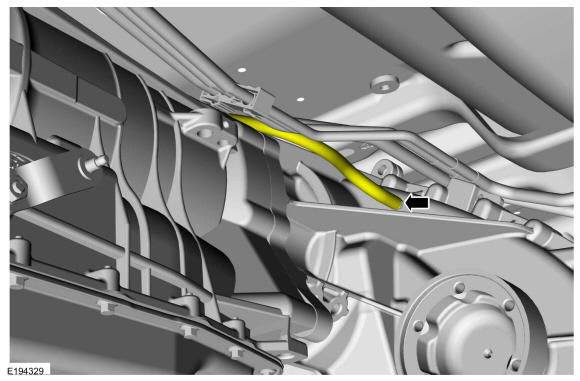

- Connect the shift motor electrical connector and attach the harness retainer clip to the transfer case.
-
NOTE: Align the index marks made during removal.
Install the rear driveshaft. Refer to: Rear Driveshaft .
-
NOTE: Align the index marks made during removal.
Install the front driveshaft. Refer to: Front Driveshaft .
- Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

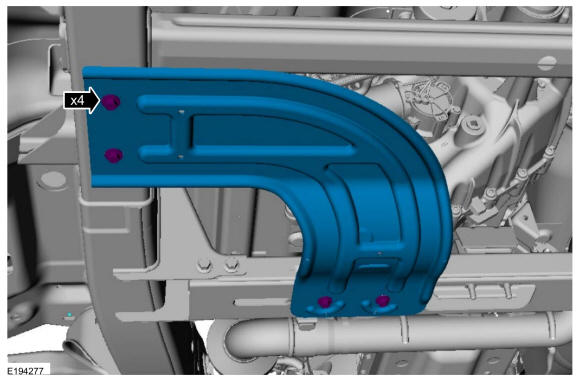

- If equipped. Position the skid plate and install the skid plate bolts.
Torque: 30 lb.ft (40 Nm)
