Receiver Drier Cartridge: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

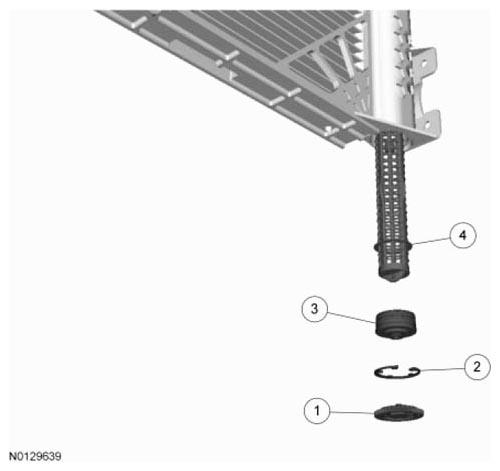

Fig 1: Identifying Plastic Receiver/Drier Cap, Snap Ring, Receiver/Drier Plug And Receiver/Drier Cartridge
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Plastic receiver/drier cap (part of 19C836 kit) |
| 2 | - | Snap ring (part of 19C836 kit) |
| 3 | - | Receiver/drier plug (part of 19C836 kit) |
| 4 | 19C836 | Receiver/drier cartridge |
