Steering Column Shroud: Notes

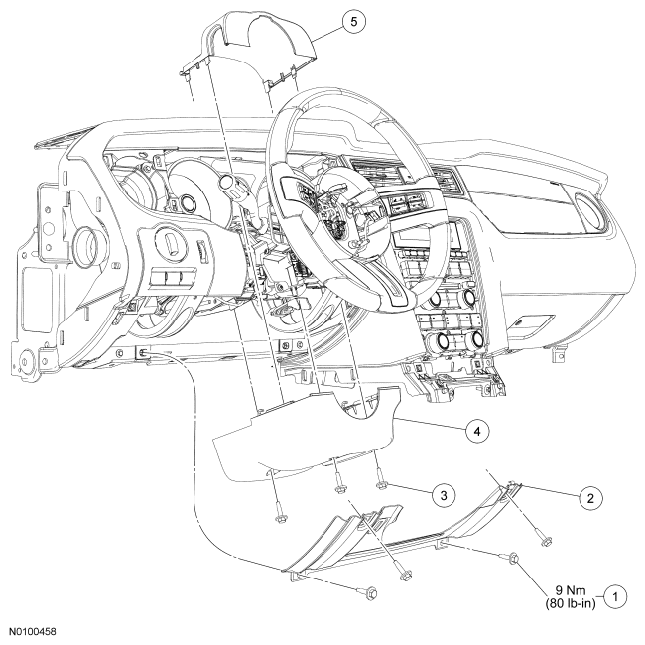

Fig 1: Steering Column Shroud Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W505424	Steering column opening trim panel reinforcement bolt (4 required)
2	04502	Steering column opening trim panel reinforcement
3	W707281	Lower steering column shroud screw (3 required)
4	3530B	Lower steering column shroud
5	3530A	Upper steering column shroud
