FixVault
Home
›
Ford
›
2012
›
Mustang Base, 2D Convertible, Automatic Trans
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Removal And Installation
›
Steering Wheel
›
Notes
Steering Wheel: Notes

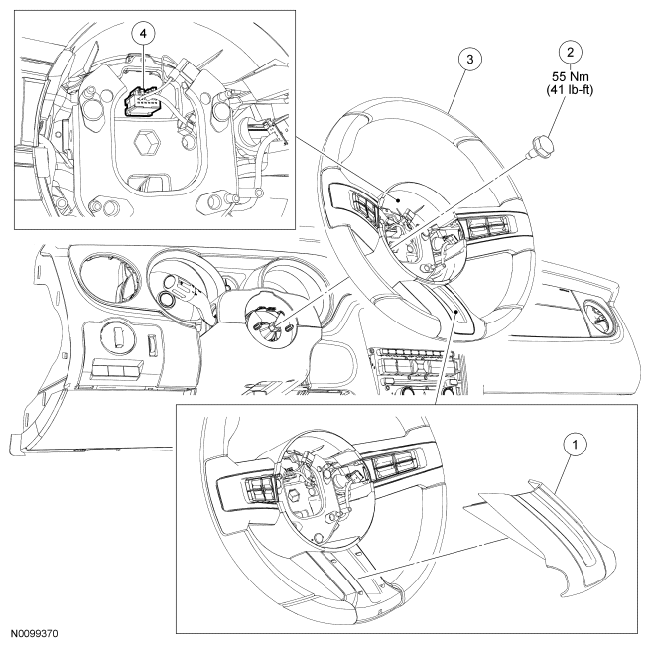

Fig 1: Steering Wheel Replacement Components With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
3F830
Steering wheel spoke finish panel (3 required)
2
W705985
Steering wheel bolt
3
3600
Steering wheel
4
-
Steering wheel switches/horn electrical connector (part of 3600)
