Throttle Body: Notes

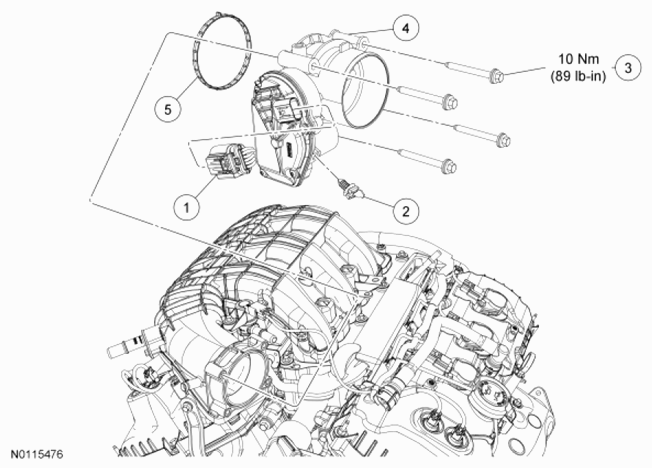

Fig 1: Throttle Body Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Electronic throttle control electrical connector (part of 12C508)
2	-	Electronic throttle control electrical connector wiring harness pin-type retainer (part of 12C508)
3	W713443	Throttle Body (TB) bolt (4 required)
4	9F991	TB
5	9E936	TB gasket
