Rear Disc Brake Shield: Notes

WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

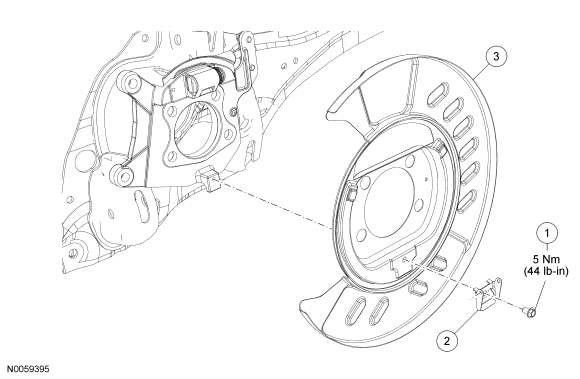

Fig 1: Exploded View Of Brake Disc Shield With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Parking brake shoe return spring bracket bolt
2	-	Parking brake shoe return spring bracket
3	2K045 RH/ 2K046 LH	Brake disc shield
