Audio Input Jack: Notes

WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Vehicle equipped with SYNC shown, others similar.

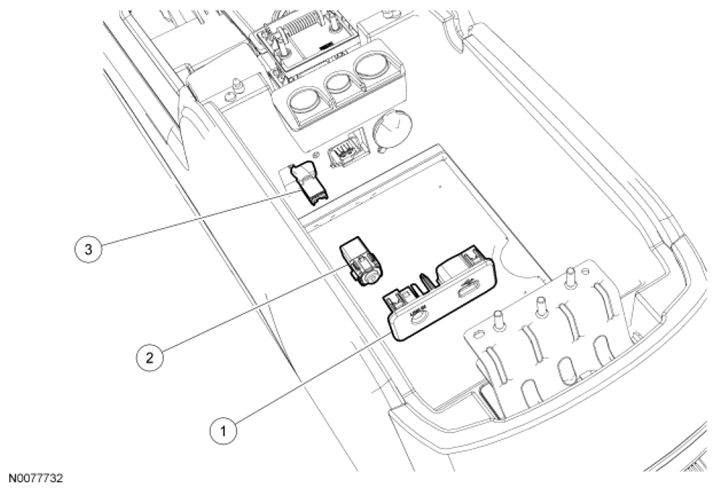

Fig 1: Identifying Audio Input Jack With Bezel And Electrical Connector

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Audio input jack bezel (part of 78045A06)
2	19A164	Audio input jack
3	-	Audio input jack electrical connector (part of 14B079)
