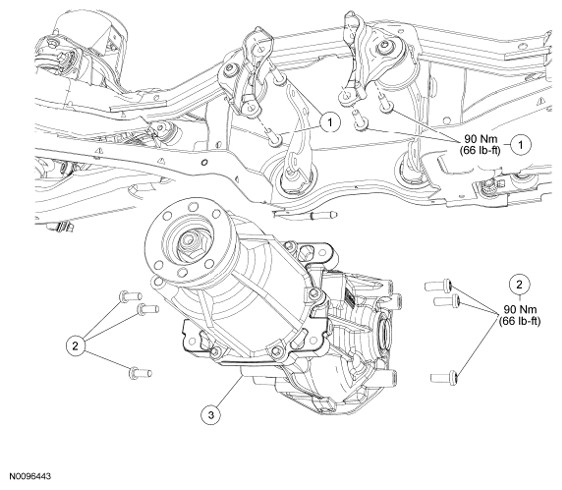

Axle Assembly
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION
| Item |
Part Number |
Description |
| 1 |
W500442 |
Differential housing-to-front insulator bracket bolts (4 required) |
| 2 |
W500444 |
Side insulator bracket-to-rear axle differential bolts (6 required) |
| 3 |
4000 |
Rear axle assembly |
