Removal And Installation: Spring: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

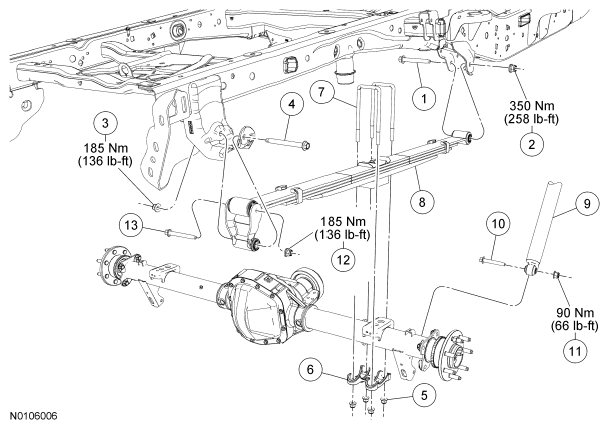

| Item | Part Number | Description |
|---|---|---|
| 1 | W709627 | Spring-to-frame bolt |
| 2 | W714297 | Spring-to-frame nut |
| 3 | W705518 | Spring shackle-to-frame nut |
| 4 | W715654 | Spring shackle-to-frame bolt |
| 5 | W520215 | U-bolt nut (4 required) |
| 6 | 5798 | U-bolt plate |
| 7 | 5705 | U-bolt (2 required) |
| 8 | 5560 | Spring |
| 9 | 18125 | Shock absorber |
| 10 | W506545 | Shock absorber lower bolt |
| 11 | W520214 | Shock absorber lower nut |
| 12 | W705518 | Spring-to-shackle nut |
| 13 | W715654 | Spring-to-shackle bolt |
NOTE:
SVT Raptor shown in illustration, others similar.

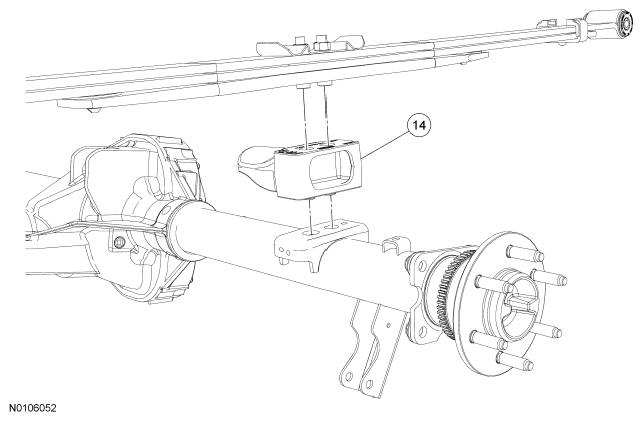

| Item | Part Number | Description |
|---|---|---|
| 14 | 5A799 | Spring spacer - Four-Wheel Drive (4WD) only |
