Steering Gear Boot: Removal

WARNING: This page is about a different car, the 2016 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the tie-rod end. Refer to: Tie Rod End .

2.

NOTE: Count and record the number of turns required to remove the outer tie-rod end jamb nut for reference during installation.

Remove the tie-rod end jamb nut.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: If equipped.

Remove the 4 underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: If equipped.

Remove the 2 underbody shield bolts and remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

5.

NOTE: If equipped.

NOTE: 4WD shown, RWD similar.

Remove the underbody shield bolts and the underbody shield.

Courtesy of FORD MOTOR COMPANY

6.

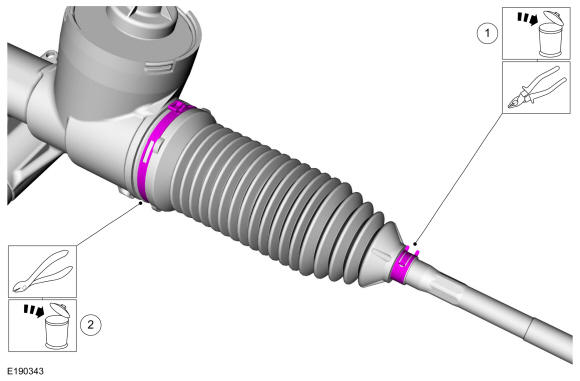

- 1.

  Remove and discard the outer steering gear boot clamp.
- 2.

  Remove and discard the inner steering gear boot clamp.

Courtesy of FORD MOTOR COMPANY

7.

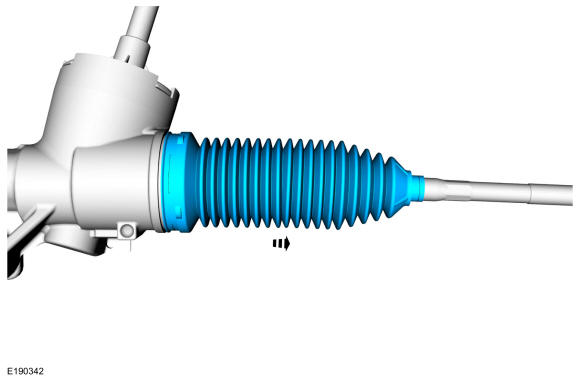

Remove the steering gear boot.

Courtesy of FORD MOTOR COMPANY
