Rear Bumper: Disassembly

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the rear bumper. Refer to: Rear Bumper .
NOTE: The number and location of electrical connectors and retainers will vary depending on option content.

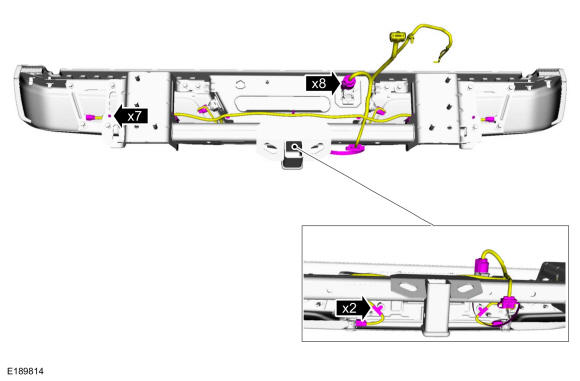

Remove the rear bumper wiring harness.
1. Disconnect the rear bumper wiring harness electrical connectors.
2. Separate the rear bumper wiring harness retainers.
Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

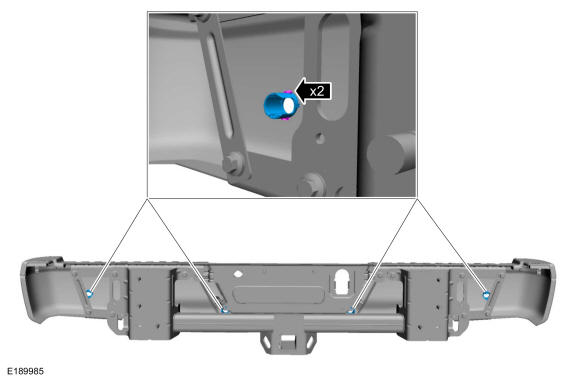

Release the tabs and remove the license plate lamp.

Courtesy of FORD MOTOR COMPANY

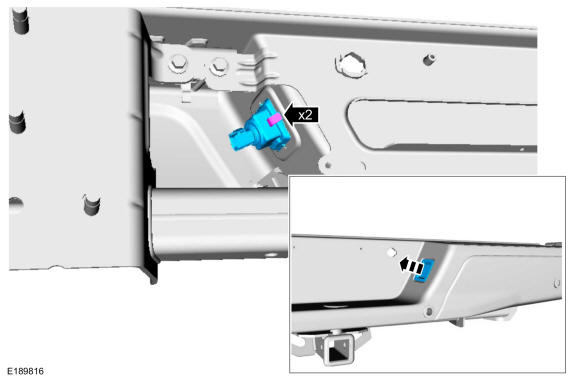

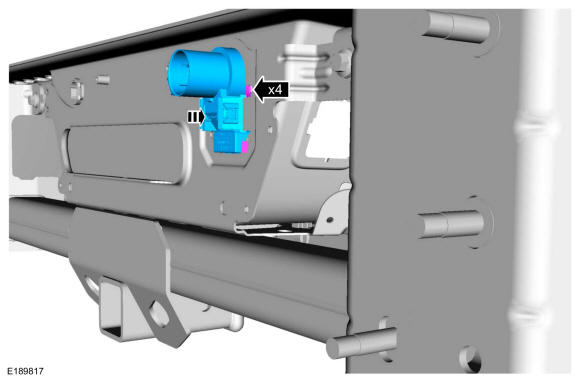

Release the tabs and remove the trailer brake electrical connector.

Courtesy of FORD MOTOR COMPANY

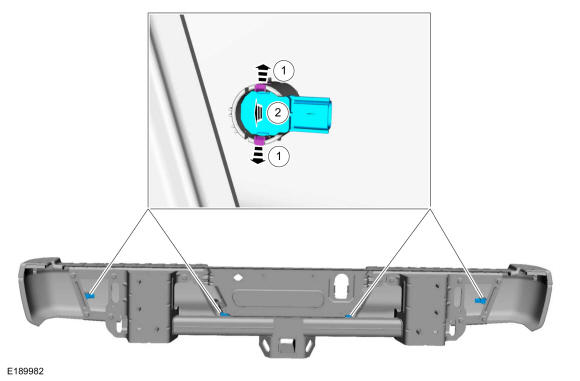

If equipped, remove the rear parking aid sensors.
1. Release the tabs.
2. Slide the rear parking aid sensors out of the bezels.
Courtesy of FORD MOTOR COMPANY
If equipped, release the tabs and remove the rear parking aid sensor bezels.

Courtesy of FORD MOTOR COMPANY

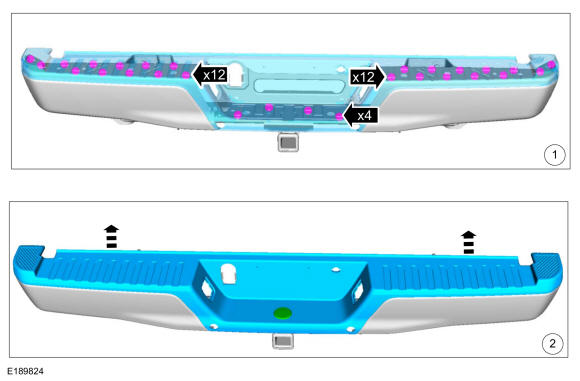

Remove the rear bumper step plate.
1. If equipped, remove the trailer ball access cover.
2. Release the tabs.
Courtesy of FORD MOTOR COMPANY

Vehicles with trailer tow package

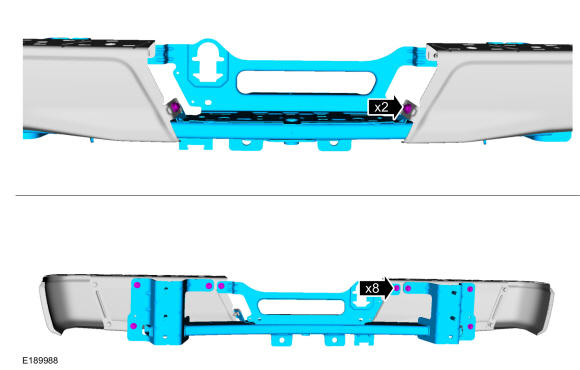

Remove the bolts and the rear bumper bar.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without trailer tow package

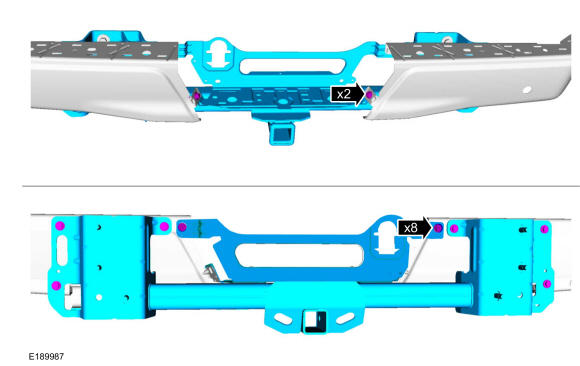

Remove the bolts and the rear bumper bar.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the bolts and the outer bumper brace.
Torque: 18 lb.ft (25 Nm)
