Remote Functions Receiver (RFR) Module: Notes

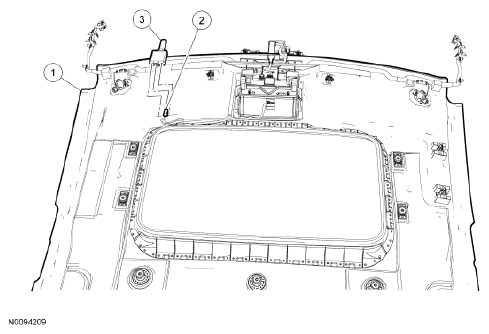

Fig 1: Identifying Remote Functions Receiver (RFR) Module, Connector And Headliner

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5451916	Headliner
2	-	Remote Functions Receiver (RFR) module electrical connector (part of 14334)
3	15K602	RFR module
