Passenger Seat Occupant Classification System (OCS) Weight Sensor Bolt System Identification

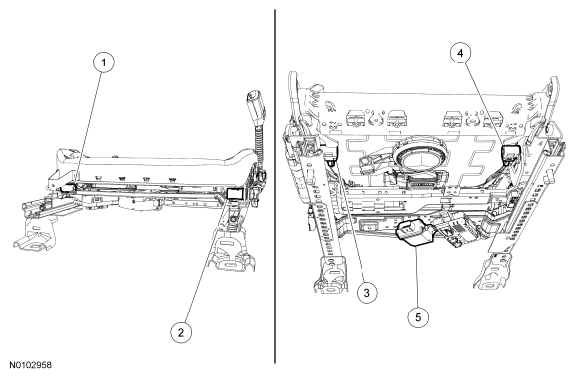

Fig 1: Identifying Passenger Seat OCS Weight Sensor Bolt System Identification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Occupant Classification System (OCS) weight sensor bolt A (part of 61710)
2	-	OCS weight sensor bolt D (part of 61710)
3	-	OCS weight sensor bolt C (part of 61710)
4	-	OCS weight sensor bolt B (part of 61710)
5	14B056	Occupant Classification System Module (OCSM)
