40 Percent Backrest

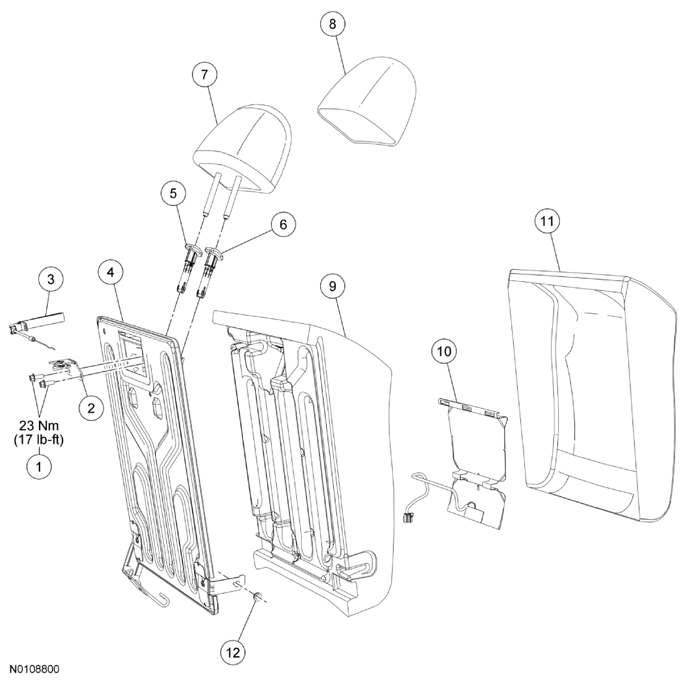

Fig 1: Exploded View Of Seat Backrest -Rear With Torque Specifications
G08003623Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505263 Latch-to-backrest frame bolts (2 required)
2 61383 Backrest latch
3 624A94 Latch release cable
4 613A39 40 percent backrest frame
5 610A16 LH head restraint guide sleeve
6 610A18 RH head restraint guide sleeve
7 611A09 Head restraint
8 501A04 Head restraint cover
9 66801 Backrest foam pad
10 14D696 Backrest heater mat
11 66601 Backrest cover
12 - Grommet
