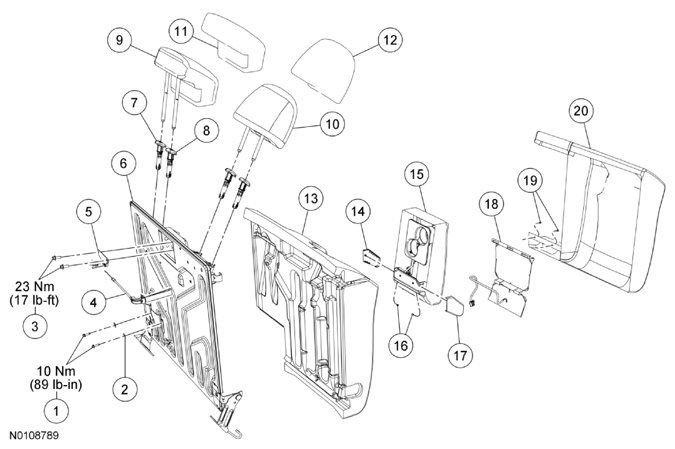

| 1 |
N605892 |
Armrest bracket-to-backrest frame bolts (2 required) |
| 2 |
W790164 |
Washer (2 required) |
| 3 |
W505263 |
Latch-to-backrest frame bolts (2 required) |
| 4 |
624A94 |
Latch release cable |
| 5 |
61383 |
Backrest latch |
| 6 |
613A38 |
60 percent backrest frame |
| 7 |
610A16 |
LH head restraint guide sleeve |
| 8 |
610A18 |
RH head restraint guide sleeve |
| 9 |
611A08 |
Center head restraint |
| 10 |
611A09 |
Outboard head restraint |
| 11 |
501A04 |
Center head restraint cover |
| 12 |
501A04 |
Outboard head restraint cover |
| 13 |
66800 |
Backrest foam pad |
| 14 |
67203 |
LH armrest cover |
| 15 |
67112 |
Armrest |
| 16 |
- |
Screws (2 required) |
| 17 |
67202 |
RH armrest cover |
| 18 |
14D696 |
Backrest heater mat |
| 19 |
- |
Pin-type retainers |
| 20 |
66600 |
Backrest cover |
