Engine Upper

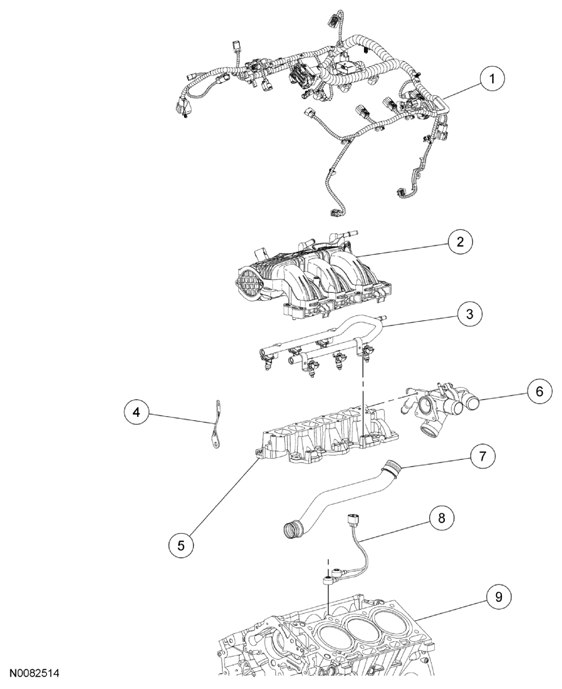

Fig 1: Exploded View Of Upper Engine

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	12C508	Engine control harness
2	9S455	Upper intake manifold
3	9F797	Fuel rail
4	9J444	Upper intake manifold support bracket
5	9K461	Lower intake manifold
6	8A856	Thermostat housing
7	9N271	Coolant tube
8	9N271	Knock Sensor (KS)
9	6010	Cylinder block
