Lower Intake Manifold: Installation

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Using new intake manifold and thermostat housing gaskets, install the lower intake manifold and the 10 bolts.
- Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

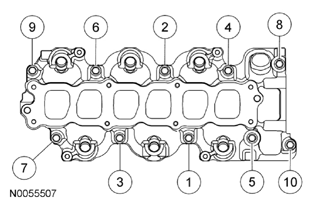

  Fig 1: Identifying Lower Intake Manifold Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the 3 thermostat housing-to-lower intake manifold bolts.
- Tighten to 10 Nm (89 lb-in).
Install the fuel rail. For additional information, refer to FUEL CHARGING AND CONTROLS - 3.5L/3.5L GTDI .
Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
