Camshaft Runout
SPECIAL TOOLS
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |
NOTE:
Refer to ENGINE MECHANICAL - 3.5L
or ENGINE MECHANICAL - 3.5L-GTDI
for the specification.

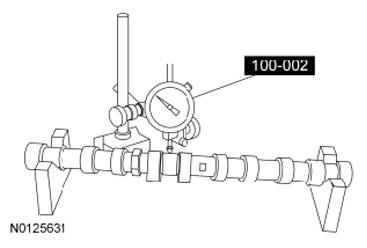

- Using the Dial Indicator Gauge with Holding Fixture, measure the camshaft runout.
- Camshaft must be supported on the first and last camshaft bearing journal.
- Rotate the camshaft and subtract the lowest Dial Indicator Gauge reading from the highest Dial Indicator Gauge reading.
NOTE:
Camshaft journals must be within specifications before checking runout.
