Rear Brake Caliper: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A |

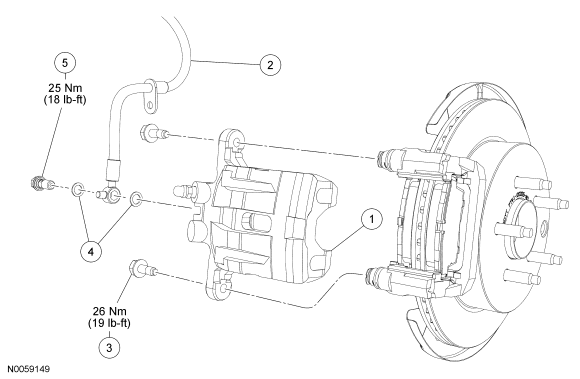

| Item | Part Number | Description |
|---|---|---|
| 1 | 2552 RH/ 2553 LH | Brake caliper |
| 2 | 2282 | Brake hose |
| 3 | - | Brake caliper guide pin bolt (2 required) |
| 4 | W711748 | Copper washers (2 required) |
| 5 | 2M085 | Brake caliper flow bolt |
