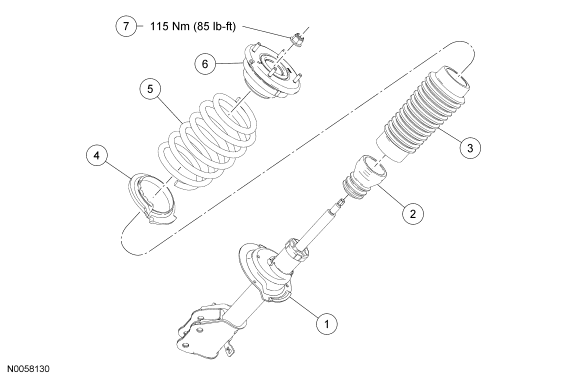

Shock Absorber and Spring Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
18K001 LH/ 18045 RH |
Shock absorber |
| 2 |
18061 |
Jounce bumper |
| 3 |
3K036 |
Dust boot |
| 4 |
5A307 |
Spring lower seat |
| 5 |
5310 |
Spring |
| 6 |
18183 |
Spring upper mount and seat |
| 7 |
W520215 |
Shock absorber rod nut |
